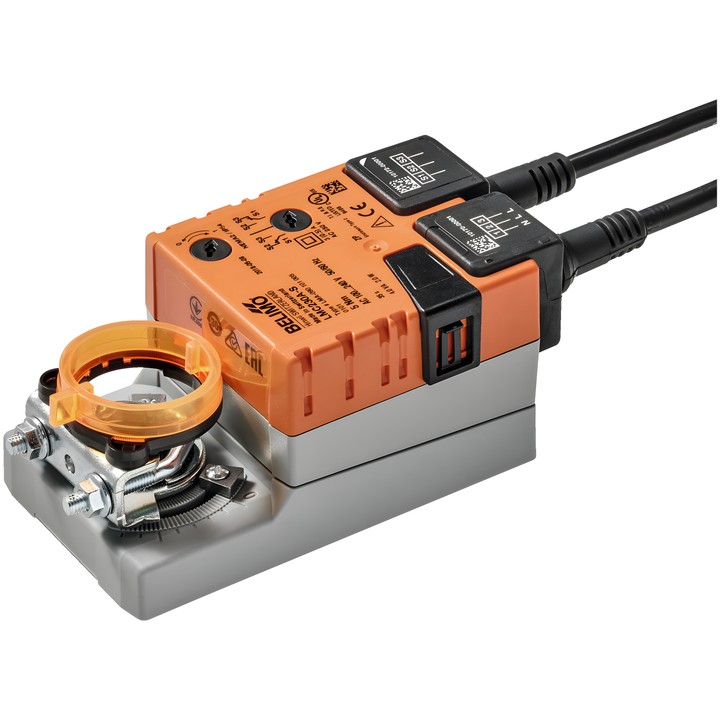

Belimo LMC230A-S - 5 Nm damper actuator

Belimo LMC230A-S - 5 Nm damper actuator

Belimo
zł552.11
VAT included
zł448.87 tax excluded

Belimo LMC230A-S rotary actuator for dampers, with a torque of 5 Nm and a nominal voltage of AC 100...240 V. Supports Open/Close and 3-point control; motor running time is 35 s / 90°.

Equipped with a 1x SPDT auxiliary switch, a universal clamp for 6...20 mm shafts and a button for manual operation. IEC/EN degree of protection: IP54.

Delivery in approx. 14 days
Share

Belimo LMC230A-S damper actuator

Rotary actuator for positioning dampers in technical building systems. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 1 m².

Key features

  • Motor torque: 5 Nm; running time: 35 s / 90°.
  • Nominal voltage: AC 100...240 V, 50/60 Hz; Open/Close and 3-point control.
  • 1x SPDT auxiliary switch, adjustable within a range of 0...100%.
  • Rotation angle: max. 95°, limited on both sides by adjustable mechanical stops.
  • Direction of movement selected by switch 0 (counterclockwise) / 1 (clockwise).
  • Manual operation by button with locking option; mechanical, plug-in position indicator.
  • Universal clamp for 6...20 mm for mounting on the damper shaft.
  • Power consumption during operation: 2 W; in the rest position: 0.5 W; power for cable sizing: 4 VA.
  • Power/control connection and auxiliary switch connection: separate 1 m cables, 3x 0.75 mm².
  • IEC/EN degree of protection: IP54; IEC/EN protection class: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LMC230A-S
  • EAN13
    7630498112393

  • AC/DC voltage
    AC 100...240 V
  • Auxiliary switch connection
    Cable 1 m, 3x 0.75 mm²
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    4 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    35 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Auxiliary contacts
    1x SPDT
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm

Techniczna karta katalogowa

Download (1.39MB)

Instrukcja montażu

Download (507.42KB)

Techniczna karta katalogowa – LMC230A-S

Download (1.39MB)

EU Declaration of Conformity – LMC230A-S

Download (32.78KB)

Environmental Declaration – LM..

Download (72.44KB)
