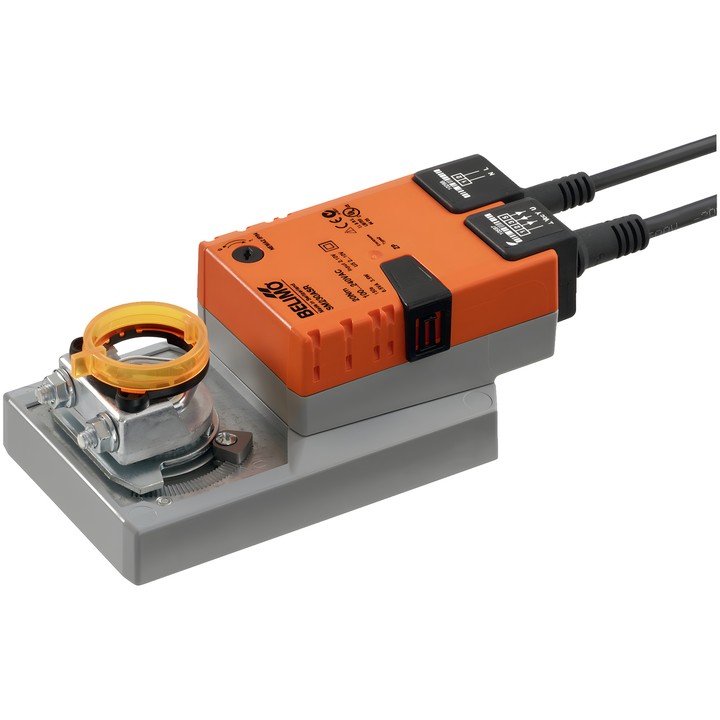

Belimo SM230ASR damper actuator with 20 Nm torque, AC 100...240 V supply and 2...10 V modulating control. Running time is 150 s / 90°.

Features a 2...10 V position feedback signal, reversible universal mounting clamp for 10...20 mm and a push button for manual operation.

Delivery in approx. 14 days
Share

Belimo SM230ASR is a modulating actuator for regulating air dampers in technical building systems. According to the technical data sheet, it is designed for dampers with an area of up to approx. 4 m².

Key features

  • Torque: 20 Nm; rated supply: AC 100...240 V, 50/60 Hz.
  • Control signal Y operating range: 2...10 V; position feedback signal U: 2...10 V.
  • Running time: 150 s / 90°; rotation angle: max. 95°, with the option of limiting it using mechanical stops.
  • Direction of movement selected by 0/1 switch; manual operation by push button, with the option to lock it.
  • Reversible universal mounting clamp for 10...20 mm and mechanical position indicator.
  • Power consumption during operation: 3.5 W; in rest position: 1 W; power for cable sizing: 6.5 VA.
  • Power connection: 1 m cable, 2x 0.75 mm²; control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN IP54 degree of protection; IEC/EN protection class II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SM230ASR
  • EAN13
    7630498114342

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1 W
  • Rated power
    6.5 VA
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Power connection
    Cable 1 m, 2x 0.75 mm²
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm
  • Control connection
    Cable 1 m, 4x 0.75 mm²

Techniczna karta katalogowa

Download (1.25MB)

Instrukcja montażu

Download (570.11KB)

EU Declaration of Conformity – SM230ASR

Download (32.76KB)

Environmental Declaration – SM..

Download (72.47KB)
