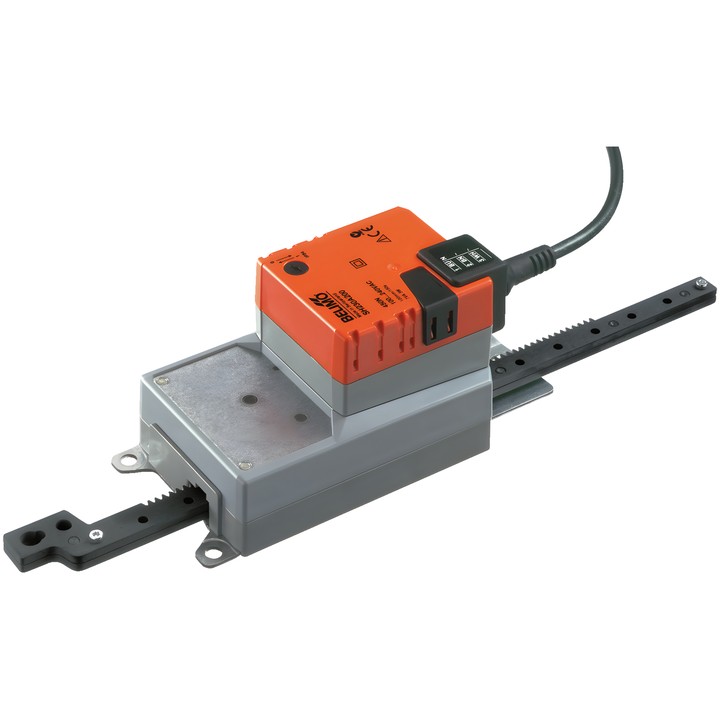

Belimo SH230A200 - linear actuator for dampers

Belimo SH230A200 - linear actuator for dampers

Belimo
zł746.70
VAT included
zł607.07 tax excluded

Belimo SH230A200 linear actuator for controlling dampers and valves in building services installations. Force 450 N, AC 100...240 V supply and Close/Open, 3-point control.

Maximum stroke 200 mm, adjustable in 20 mm increments; motor running time 150 s / 100 mm. IEC/EN IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo SH230A200 – linear actuator

Actuator for controlling dampers and valves in stationary heating, ventilation and air-conditioning installations. The documentation specifies an air damper size of up to approx. 3 m².

Key specifications

  • Motor force: 450 N.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Stroke: max. 200 mm, adjustable in 20 mm increments; stroke can be mechanically limited on both sides.
  • Motor running time: 150 s / 100 mm.
  • Power consumption during operation: 3 W; at rest: 0.6 W; power for cable sizing: 7 VA.
  • Direction of movement selected by switch 0 (extended) / 1 (retracted).
  • Manual adjustment using a push-button with locking option.
  • Power and control connection: 1 m cable, 3x 0.75 mm².
  • IEC/EN IP54 protection rating; IEC/EN protection class II, double insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SH230A200
  • EAN13
    7630498114182

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    3 W
  • Power consumption (holding)
    0.6 W
  • Rated power
    7 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    450 N
  • Manual override
    Push-button, with locking option
  • Stroke
    200 mm
  • Running time (motor)
    150 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch: 0 (extended) / 1 (retracted)

Techniczna karta katalogowa

Download (965.41KB)

Instrukcja montażu

Download (643.51KB)

EU Declaration of Conformity – SH230A200

Download (32.77KB)

Environmental Declaration – SH..200..

Download (71.91KB)
