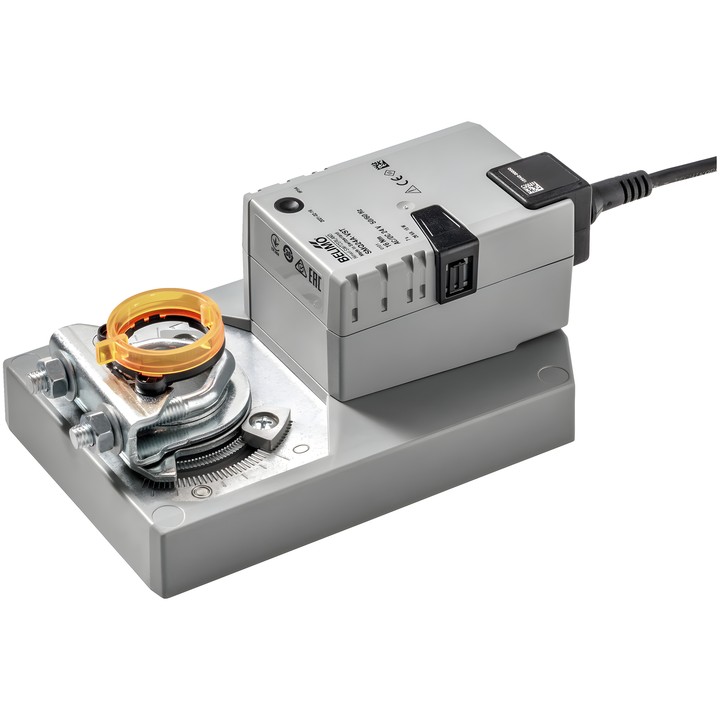

Belimo SMQ24A-VST - rotary actuator for VAV and CAV dampers

Name: Belimo SMQ24A-VST - rotary actuator for VAV and CAV dampers
Brand: Belimo
SKU: SMQ24A-VST
Price: 2594.07 PLN
Availability: OutOfStock

Belimo

zł2,594.07

VAT included

zł2,109.00 tax excluded

VAV-Universal rotary actuator for VAV and CAV units in building services installations. Torque 16 Nm, AC/DC 24 V supply, communicative PP control and running time 7 s / 90°.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo SMQ24A-VST

Ready-to-connect VAV-Universal rotary actuator for VAV and CAV units in building services installations. Designed for air dampers with an area of up to approx. 4 m².

Key features and technical data

Torque: 16 Nm; motor running time: 7 s / 90°.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Control: communicative PP.
Power consumption during operation: 15 W; in the resting position: 2 W; sizing power: 26 VA.
Rotation angle: max. 95°, with adjustable mechanical stops on both sides.
Manual adjustment by push-button, with locking option; mechanical plug-in position indicator.
Mechanical connection: universal clamp 12...26.7 mm. Electrical connection: 0.5 m cable with VST connector.
Protection rating IEC/EN IP54; protection class IEC/EN III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

After commissioning the installation and after every change to the rotation angle, self-adaptation is required by pressing the adaptation button once.
