Product unavailable

Belimo SN2-C7/500 - auxiliary switch

Name: Belimo SN2-C7/500 - auxiliary switch
Brand: Belimo
SKU: SN2-C7/500
Price: 801.96 PLN
Availability: OutOfStock

Belimo

zł801.96

VAT included

zł652.00 tax excluded

Auxiliary switch for damper actuators and rotary actuators, equipped with two 2x SPDT switches. Switching points can be set from 0...100% in 10% increments.

Connection: 5 m cable, 6x 0.75 mm², FRNC (halogen-free). Protection rating IP54.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

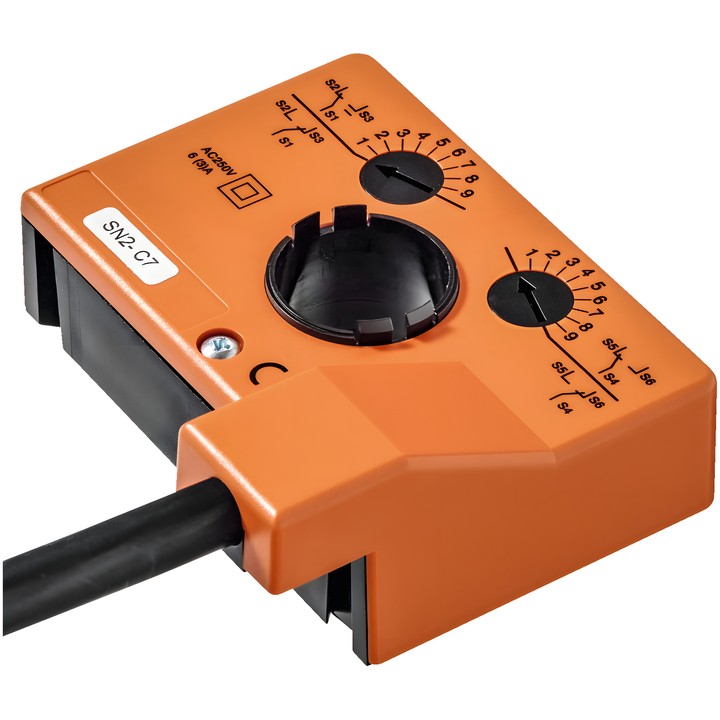

Belimo SN2-C7/500 auxiliary switch

Auxiliary switch for position indication or switching functions at a selected actuator angle setting. Designed for damper actuators and rotary actuators.

Key features

Two switches: 2x SPDT.
Switching points adjustable from 0...100% in 10% increments; set using the adjustment dial.
Auxiliary switch contact rating: 6 A (3 A for inductive loads), AC 250 V.
Connection: 5 m cable, 6x 0.75 mm², FRNC (halogen-free).
IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
Ambient temperature: -30...50°C [-22...122°F].
Weight: 0.63 kg.

Adjust the auxiliary switches only when the power supply is disconnected.
