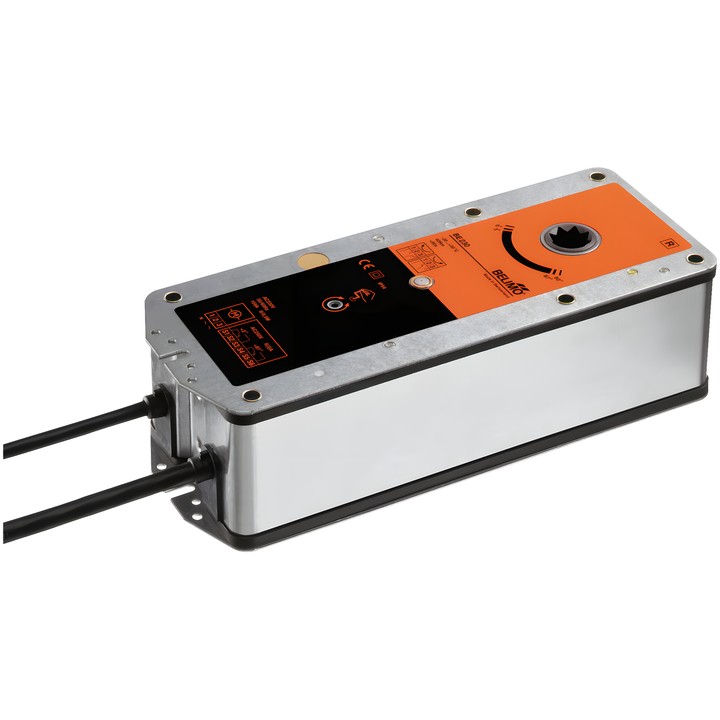

Belimo BE230 - actuator for smoke control dampers

Name: Belimo BE230 - actuator for smoke control dampers
Brand: Belimo
SKU: BE230
Price: 3557.16 PLN
Availability: OutOfStock

Belimo

zł3,557.16

VAT included

zł2,892.00 tax excluded

Belimo BE230 actuator for smoke control dampers with a torque of 40 Nm, AC 230 V supply and Close/Open control. Motor running time is <60 s / 90°.

Equipped with 2x SPDT, a 14x14 mm form-fit connection with a continuous hollow shaft, and manual adjustment by crank.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo BE230 – actuator for smoke control dampers

BE230 is a two-point-controlled actuator for smoke control dampers. The direction of movement can be selected by L/R mounting. Integrated auxiliary switches are used to signal the damper's end positions.

Key features

Motor torque: 40 Nm.
Rated voltage: AC 230 V; frequency: 50/60 Hz.
Control: Close/Open; motor running time: <60 s / 90°.
Auxiliary switches: 2x SPDT, switching points 3° / 87°.
Mechanical connection: 14x14 mm form-fit connection, continuous hollow shaft.
Manual adjustment using a crank; mechanical position indicator.
Power consumption: 8 W during movement and 0.5 W in the rest position; sizing power: 15 VA.
Power and control connection: 1 m cable, 3x 0.75 mm², FRNC (halogen-free); auxiliary switch connection: 1 m cable, 6x 0.75 mm², FRNC (halogen-free).
Degree of protection: IP54; IEC/EN protection class II, reinforced insulation.
Ambient temperature: -30...50°C [-22...122°F].

Supplied with: hand crank, position indicator and protective cover. The actuator is adapted to the damper and installed by the smoke control damper manufacturer.
