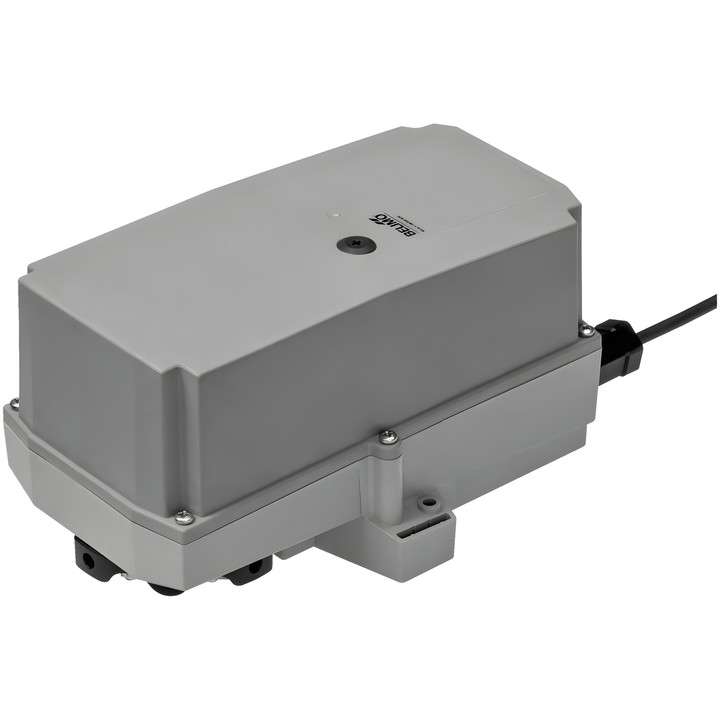

Belimo NM24P-MP - rotary actuator for dampers

Name: Belimo NM24P-MP - rotary actuator for dampers
Brand: Belimo
SKU: NM24P-MP
Price: 1558.61 PLN
Availability: BackOrder

Belimo

zł1,558.61

VAT included

zł1,267.16 tax excluded

RobustLine communication rotary actuator for dampers, with a torque of 10 Nm and AC/DC 24 V supply. It supports MP-Bus and 2...10 V modulating control; running time is 150 s / 90°.

The housing has an IP66/67 protection rating. The actuator features a universal shaft clamp for 10...20 mm shafts and a push button for manual adjustment.

Delivery in approx. 14 days

Belimo NM24P-MP – actuator for dampers

The RobustLine communication rotary actuator is designed to position dampers in HVAC systems, comparable industrial systems and technical building installations. According to the technical data sheet, it supports air dampers with an area of up to approx. 2 m².

Main features and specifications

Torque: 10 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
Modulating control: 2...10 V; communication: MP-Bus; position feedback signal: 2...10 V.
Motor running time: 150 s / 90°; adjustable running time: 43...173 s.
Angle of rotation: max. 95°; adjustable mechanical angle-of-rotation stops.
Direction of movement selected by 0/1 switch; manual adjustment using a push button with locking option.
Universal shaft clamp for 10...20 mm shafts; mechanical position indicator.
Power consumption: 3.5 W while moving and 1.4 W at rest; 6 VA for cable sizing.
Connection cable: 1 m, 4x 0.75 mm², halogen-free.
Degree of protection IEC/EN: IP66/67; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

The actuator can convert the signal from a connected sensor and transmit it via MP-Bus to the higher-level system. Selected parameters can be changed using Belimo Assistant 2.
