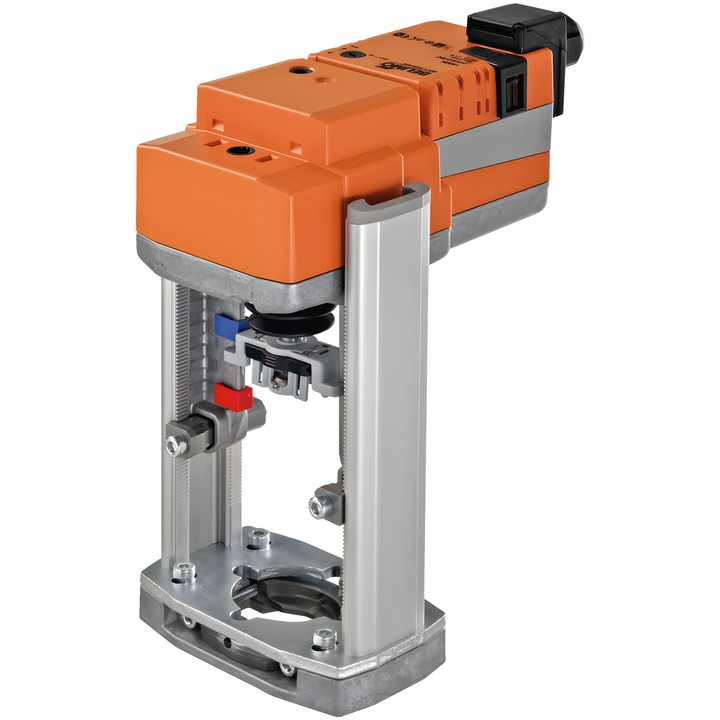

Belimo SV230A-RE - linear actuator for globe valves

Belimo SV230A-RE - linear actuator for globe valves

Belimo
zł2,215.37
VAT included
zł1,801.11 tax excluded

RetroFIT+ linear actuator for 2- and 3-way globe valves. Force 1500 N, AC 100...240 V supply, Close/Open or 3-point control, and 20 mm stroke.

Motor running time is 150 s / 20 mm. The actuator has push-button manual override with locking option and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo SV230A-RE – actuator for globe valves

RetroFIT+ linear actuator designed for 2- and 3-way globe valves. The RetroFIT+ design enables installation on valves from various manufacturers using a bracket and universal valve neck and stem adapters.

Key technical data

  • Actuator force: 1500 N; stroke: 20 mm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Motor running time: 150 s / 20 mm.
  • Power consumption during operation: 2 W; in standby: 1 W; power for wire sizing: 4 VA.
  • Power and control connection: 4 mm² terminals (cable ø4...10 mm).
  • Push-button manual override with locking option.
  • Mechanical position indication; IEC/EN IP54 protection rating.
  • IEC/EN protection class II, reinforced insulation.

The actuator is overload-protected and stops automatically when the end position is reached.

  • Brand
    Belimo
  • Reference
    SV230A-RE
  • EAN13
    7630498115332

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    1 W
  • Rated power
    4 VA
  • Power supply control connection
    Terminals 4 mm² (cable ø4...10 mm)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    1500 N
  • Manual override
    Push-button, with locking option
  • Stroke
    20 mm
  • Running time (motor)
    150 s / 20 mm

Techniczna karta katalogowa

Download (1.28MB)

Instrukcja montażu

Download (2.63MB)

EU Declaration of Conformity – SV230A-RE

Download (32.52KB)

Environmental Declaration – SV..-RE

Download (72.09KB)
