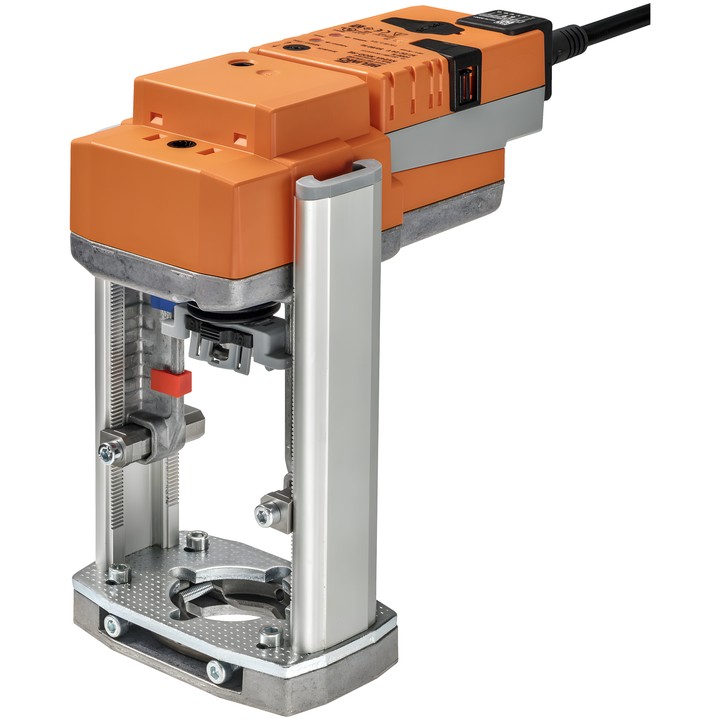

Belimo NV24A-MOD-RE - actuator for globe valves

Name: Belimo NV24A-MOD-RE - actuator for globe valves
Brand: Belimo
SKU: NV24A-MOD-RE
Price: 4041.78 PLN
Availability: OutOfStock

zł4,041.78

VAT included

zł3,286.00 tax excluded

RetroFIT+ communication actuator for 2- and 3-way globe valves. Force 1000 N, AC/DC 24 V supply, 20 mm stroke and 150 s / 20 mm running time.

Supports BACnet MS/TP, Modbus RTU and MP-Bus, as well as analogue control. Also enables hybrid operation and sensor signal conversion.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo NV24A-MOD-RE

RetroFIT+ communication linear actuator for 2- and 3-way globe valves. It can operate with modulating, communication or hybrid control.

Actuating force: 1000 N; stroke: 20 mm.
Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
Communication: BACnet MS/TP, Modbus RTU (factory setting) and MP-Bus.
Operating range Y: 2...10 V; adjustable operating range Y: 0.5...10 V; position feedback signal U: 2...10 V.
Motor running time: 150 s / 20 mm; adjustable running time: 90...150 s.
Power consumption during operation: 1.5 W; at rest: 0.5 W; for cable sizing: 3 VA.
Power and control connection: 1 m cable, 6x 0.75 mm².
Manual adjustment by push-button with locking option; adaptation of the setting range.
Connection for a passive, active or switching-contact sensor, with its signal transmitted to the bus.
Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

AC/DC voltage

AC/DC 24 V
Power consumption (running)

1.5 W
Power consumption (holding)

0.5 W
Rated power

3 VA
Power supply control connection

Cable 1 m, 6x 0.75 mm²
Control type

BACnet MS/TP Modbus RTU MP-Bus DC 2...10 V DC 0.5...10 V Hybrid (communicating/analogue)
Protection rating

IP54
NEMA protection rating

NEMA 2
Enclosure type

UL Enclosure Type 2
Force

1000 N
Manual override

Push-button, with locking option
Stroke

20 mm
Running time (motor)

150 s / 20 mm
Variable motor running time

90...150 s
