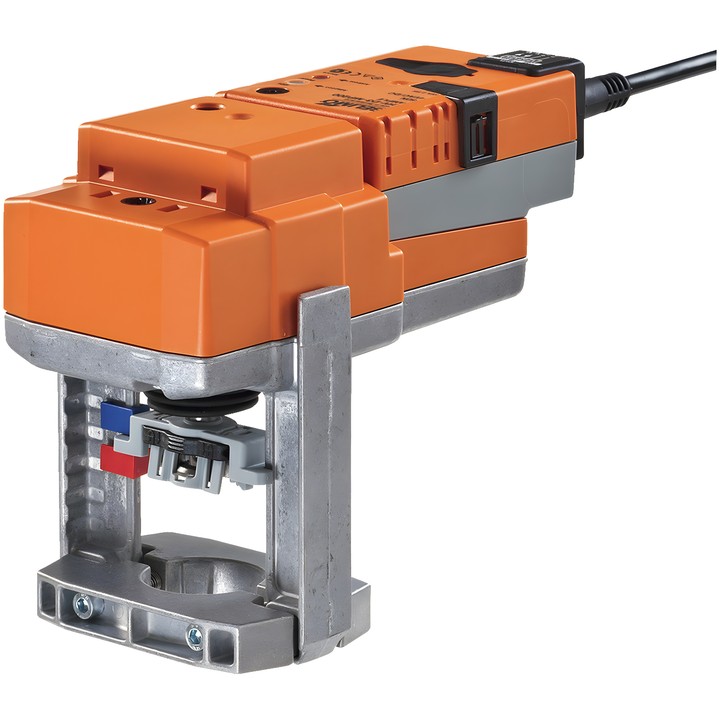

Belimo SV24A-MOD - actuator for globe valves

Belimo SV24A-MOD

Actuator for 2- and 3-way globe valves, designed for modulating, communication and hybrid control. The integrated interface supports BACnet MS/TP, Modbus RTU and MP-Bus.

Key features and specifications

• Actuator force: 1500 N; stroke: 20 mm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Power consumption during operation: 2 W; in the idle position: 1.5 W; for wire sizing: 3.5 VA.
• Running time: 150 s / 20 mm; adjustable running time: 90...150 s.
• Y operating range: 2...10 V, adjustable 0.5...10 V; U position feedback signal: 2...10 V.
• Communication: BACnet MS/TP, Modbus RTU (factory setting) and MP-Bus. Hybrid operation with analogue control and position feedback via communication is possible.
• Can be connected to a passive, active or switching contact sensor, with its signal transmitted via the bus.
• Manual adjustment by push-button, with option to lock; setting range adaptation is automatic at initial power-up.
• Power and control connection: 1 m cable, 6x 0.75 mm².
• IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
