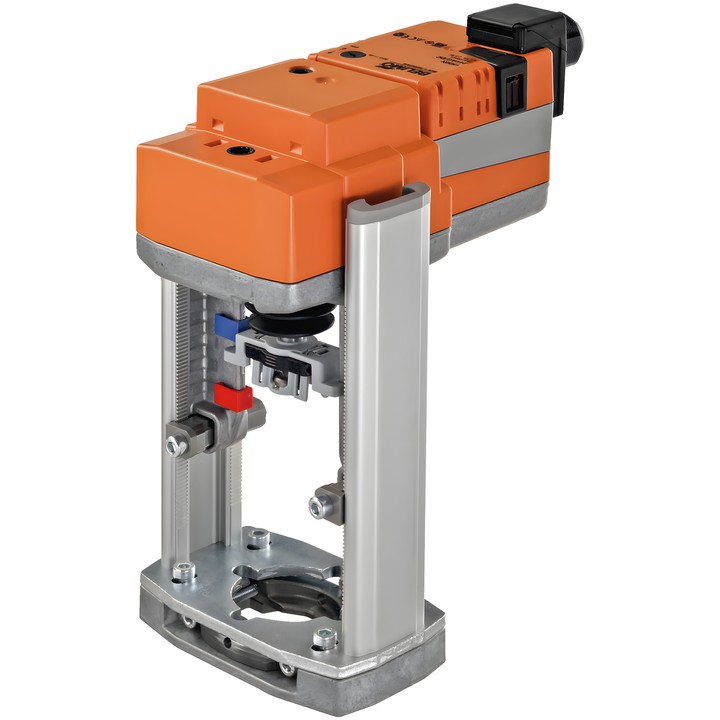

Belimo SV24A-RE - linear actuator for globe valves

Belimo SV24A-RE - linear actuator for globe valves

Belimo
zł2,430.07
VAT included
zł1,975.67 tax excluded

RetroFIT+ linear actuator for 2- and 3-way globe valves. Force 1500 N, AC/DC 24 V supply, Close/Open or 3-point control, 20 mm stroke.

Motor running time is 150 s / 20 mm. The actuator has a manual override button with lock function and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo SV24A-RE – actuator for globe valves

RetroFIT+ actuator designed for 2- and 3-way globe valves. The documentation describes installation on valves from various manufacturers using a bracket and universal valve neck and stem adapters.

Key features and technical data

  • Actuating force: 1500 N; stroke: 20 mm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Motor running time: 150 s / 20 mm.
  • Power consumption during operation: 2.5 W; at rest: 0.5 W; sizing power: 5 VA.
  • Power and control connection: 4 mm² terminals (cable ø4...10 mm).
  • Manual override by button with lock function; mechanical position indicator.
  • Protection rating IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Overload protection and automatic stop when the end position is reached.

  • Brand
    Belimo
  • Reference
    SV24A-RE
  • EAN13
    7630498122385

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    5 VA
  • Power supply control connection
    Terminals 4 mm² (cable ø4...10 mm)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    1500 N
  • Manual override
    Push-button, with locking option
  • Stroke
    20 mm
  • Running time (motor)
    150 s / 20 mm

Techniczna karta katalogowa

Download (1.29MB)

Instrukcja montażu

Download (2.63MB)

EU Declaration of Conformity – SV24A-RE

Download (32.47KB)

Environmental Declaration – SV..-RE

Download (72.09KB)
