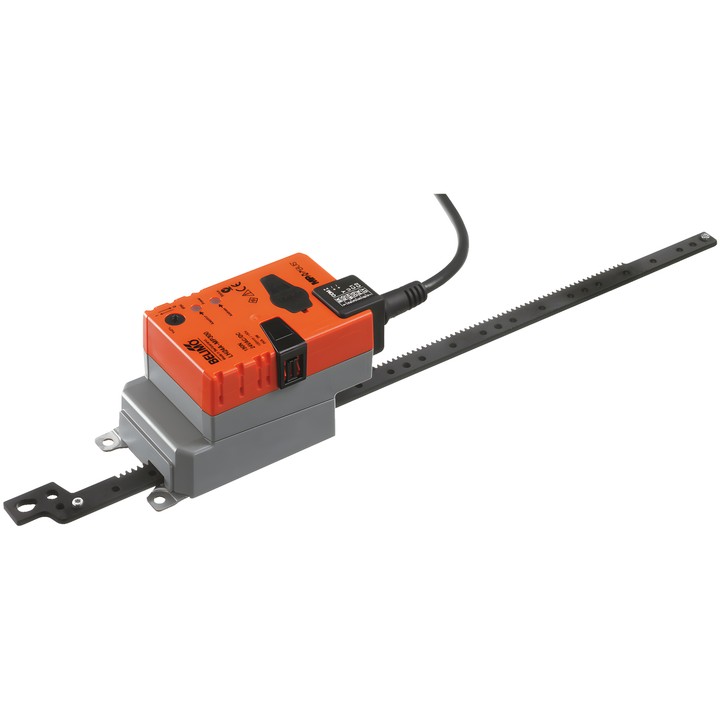

Belimo LH24A-MP300 - linear actuator

Belimo LH24A-MP300 - linear actuator

Belimo
zł754.08
VAT included
zł613.07 tax excluded

Belimo LH24A-MP300 communication-capable linear actuator for controlling dampers and slide valves in technical building systems. Force 150 N, AC/DC 24 V supply and MP-Bus communication.

Max. stroke 300 mm, adjustable in 20 mm increments, running time 150 s / 100 mm and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo LH24A-MP300 – linear actuator

Actuator for controlling dampers and slide valves in stationary heating, ventilation and air conditioning systems. Supports analogue control and MP-Bus communication. It can convert the signal from a connected sensor for transmission via MP-Bus.

Key features and specifications

  • Actuating force: 150 N; air damper size: up to approx. 1 m².
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Modulating control; operating range Y: 2...10 V, feedback signal U: 2...10 V; MP-Bus communication.
  • Stroke: max. 300 mm, adjustable in 20 mm increments; stroke can be limited by mechanical stops on both sides.
  • Motor running time: 150 s / 100 mm; adjustable running time: 70...270 s / 100 mm.
  • Power consumption during operation: 2.5 W; at rest: 1.3 W; for cable sizing: 5 VA.
  • Direction of movement selected by switch; manual adjustment by push-button with locking option.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LH24A-MP300
  • EAN13
    7630498112096

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    1.3 W
  • Rated power
    5 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    150 N
  • Manual override
    Push-button, with locking option
  • Stroke
    300 mm
  • Running time (motor)
    150 s / 100 mm
  • Variable motor running time
    70...270 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch

Techniczna karta katalogowa

Download (1.5MB)

Instrukcja montażu

Download (343.85KB)

Techniczna karta katalogowa – LH24A-MP300

Download (1.5MB)

EU Declaration of Conformity – LH24A-MP300

Download (32.8KB)

Environmental Declaration – LH..300..

Download (71.86KB)
