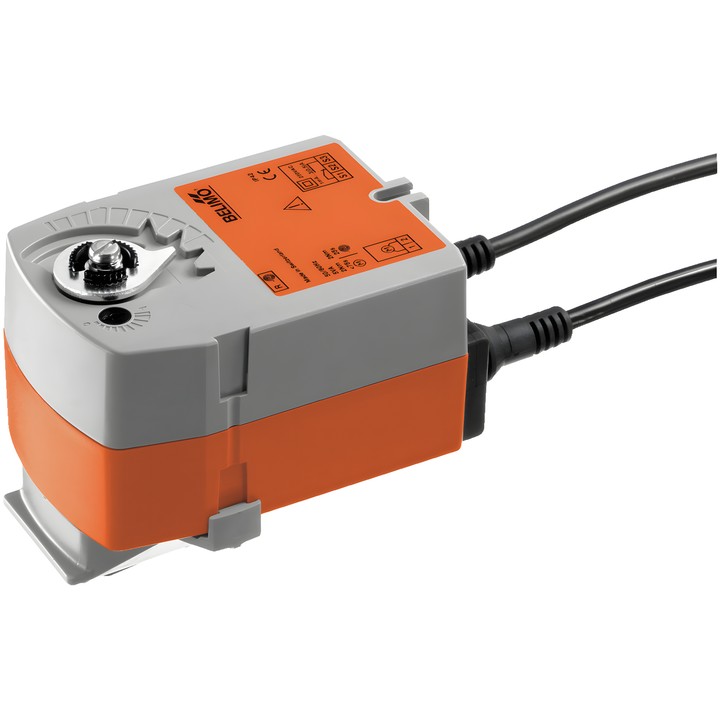

Belimo TRF230-S-O - rotary actuator for ball valves

Belimo TRF230-S-O – actuator for ball valves

The rotary actuator moves the valve to its operating position while tensioning the return spring. If the power supply is interrupted, the spring moves the valve to its fail-safe position: open (NO, A–AB = 100%). For valves with an L-port, the documentation specifies A–AB = 0%.

Key features and specifications

• Motor and fail-safe function torque: 2.5 Nm.
• Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
• Control: Open/Close.
• Motor running time: 75 s / 90°; fail-safe function running time: <75 s / 90°.
• Integrated 1x SPDT auxiliary switch, adjustable from 0...100%.
• Power consumption: 2.5 W during operation, 1.5 W at rest; sizing power for cable selection: 5 VA.
• Power and control cable: 1 m, 2x 0.75 mm²; auxiliary switch cable: 1 m, 3x 0.75 mm².
• Mechanical position indicator and mechanical rotation angle limiter.
• Degree of protection: IP42; ambient temperature: -30...50°C.

The actuator is mounted directly on the ball valve using one screw; its mounting orientation relative to the valve can be selected in 90° increments. The device is protected against overload and stops automatically when the end stop is reached.
