Belimo UM24Y-SR-F-L.1 - rotary actuator for dampers

Belimo UM24Y-SR-F-L.1 - rotary actuator for dampers

Belimo
zł505.53
VAT included
zł411.00 tax excluded

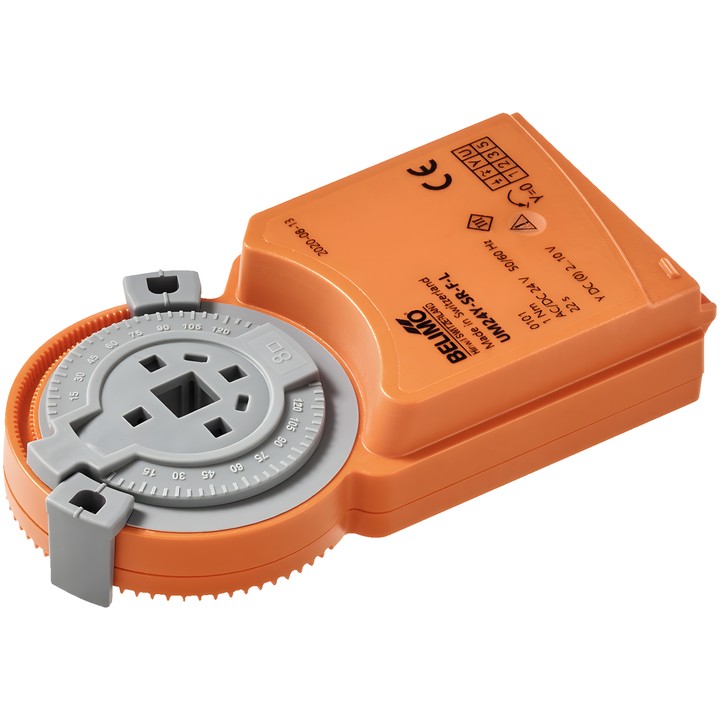

Belimo UM24Y-SR-F-L.1 rotary actuator for dampers with a torque of 1 Nm, AC/DC 24 V supply and 2...10 V analogue control. The running time is 22 s / 90°, and the position feedback range is 2...10 V.

The model has an 8x8 mm form-fit connection, a plug connector and IP20 protection. The product is supplied in a multipack of 100 pcs.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo UM24Y-SR-F-L.1 – actuator for dampers

Rotary actuator with analogue control, designed for factory installation in building services equipment. According to the documentation, it can operate air dampers with an area of up to approximately 0.2 m².

Key features and specifications

  • Torque: 1 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
  • Operating range Y: 2...10 V; position feedback U: 2...10 V.
  • Motor running time: 22 s / 90°; rotation angle: 95°, fixed setting.
  • Motor direction of rotation: counter-clockwise (ccw); manual override: no.
  • Mechanical connection: 8x8 mm form-fit connection.
  • Electrical connection: Molex Mini-Fit Jr. 39303045 plug connector; the cable-side mating connector is not included in the scope of delivery.
  • Power consumption during operation: 1.5 W; at rest: 0.5 W; wire sizing power: 2.5 VA.
  • IEC/EN protection rating: IP20; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].
  • Multipack: 100 pcs.

  • Brand
    Belimo
  • Reference
    UM24Y-SR-F-L.1
  • EAN13
    7630498122637

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    2.5 VA
  • Power supply control connection
    Connection plug (cable-side mating connector not included)
  • Control type
    Analog
  • Protection rating
    IP20
  • NEMA protection rating
    NEMA 1
  • Enclosure type
    UL Enclosure Type 1
  • Manual override
    No
  • Running time (motor)
    22 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Connection plug
    Molex Mini-Fit Jr. 39303045 connector
  • Torque
    1 Nm
  • Direction of movement - motor
    counterclockwise rotation (ccw)
  • Rotational angle
    95°
  • Mechanical connection
    Form-fit connection 8x8 mm
