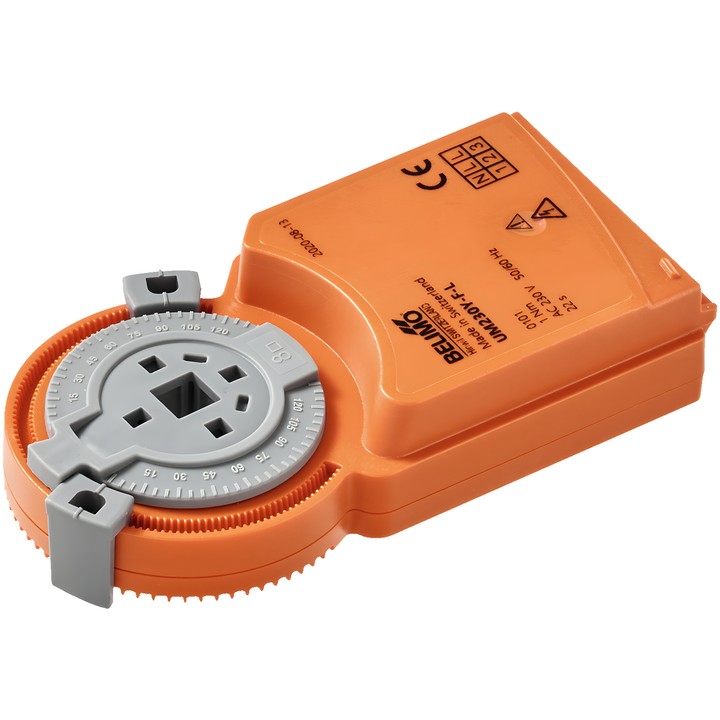

Belimo UM230Y-F-R.1 - damper actuator

Belimo UM230Y-F-R.1 - damper actuator

Belimo
zł452.64
VAT included
zł368.00 tax excluded

Belimo UM230Y-F-R.1 damper actuator with a torque of 1 Nm, powered by AC 100...240 V. Supports Open/Close and 3-point control; running time is 22 s / 90°.

It has an 8x8 mm form-fit connection, a plug connection and IP20 protection rating. Supplied as a multipack of 100 pcs.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo UM230Y-F-R.1 damper actuator

Rotary actuator designed for air dampers. According to the documentation, it is intended for factory installation in building services equipment.

Key features

  • Torque: 1 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Open/Close, 3-point.
  • Motor running time: 22 s / 90°; direction of rotation: clockwise (cw).
  • Angle of rotation: 0...287.5°; can be limited by a mechanical end stop.
  • Mechanical connection: 8x8 mm form-fit connection.
  • Power consumption during operation: 2 W; at rest: 1.5 W; sizing power: 4.5 VA.
  • Electrical connection: plug; Molex Mini-Fit Jr. 39303035 connector. The cable-side socket is not supplied.
  • IEC/EN protection rating: IP20; ambient temperature: -30...50°C [-22...122°F].
  • Manual override: No.
  • Multipack: 100 pcs.

  • Brand
    Belimo
  • Reference
    UM230Y-F-R.1
  • EAN13
    7630498122569

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    1.5 W
  • Rated power
    4.5 VA
  • Power supply control connection
    Connection plug (cable-side mating connector not included)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP20
  • NEMA protection rating
    NEMA 1
  • Enclosure type
    UL Enclosure Type 1
  • Manual override
    No
  • Running time (motor)
    22 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Connection plug
    Molex Mini-Fit Jr. 39303035 connector
  • Torque
    1 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    0...287.5°
  • Mechanical connection
    Form-fit connection 8x8 mm

Techniczna karta katalogowa

Download (1.58MB)

Instrukcja montażu

Download (3.4MB)

EU Declaration of Conformity – UM230Y-F-R.1

Download (331.83KB)

Environmental Declaration – UM..

Download (71.03KB)
