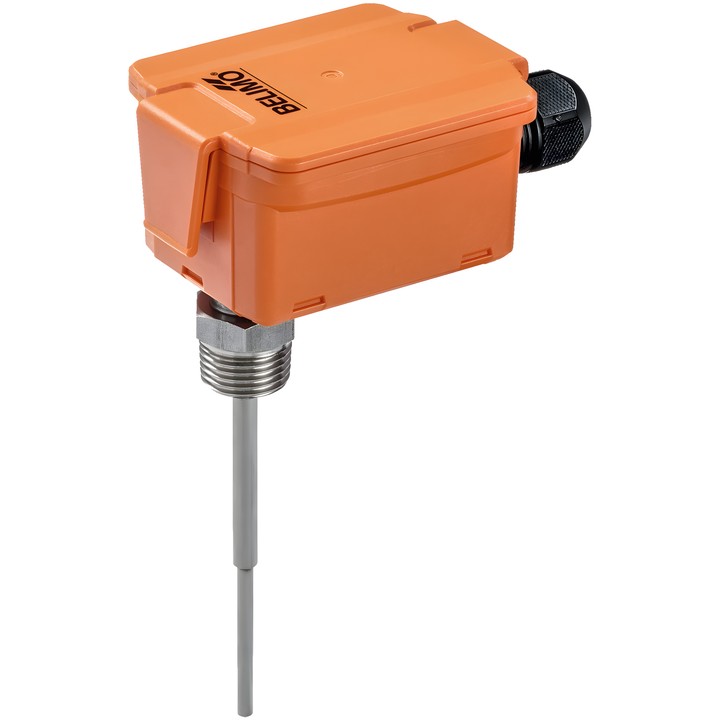

Belimo 01PT-1DH - immersion temperature sensor

Belimo 01PT-1DH - immersion temperature sensor

Belimo
zł250.90
VAT included
zł203.98 tax excluded

Passive Belimo 01PT-1DH immersion temperature sensor with Ni1000TK5000 output signal. The stainless steel probe is 50 mm long and has a diameter of 6/4 mm.

The sensor is designed to measure liquid temperature. It has an R 1/2" connection and an IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days
Share

Belimo 01PT-1DH – immersion temperature sensor

Passive temperature sensor with a fast response characteristic, designed to measure liquid temperature. Model 01PT-1DH has a stainless steel probe for direct immersion.

Key features and specifications

  • Output signal: Ni1000TK5000.
  • Probe length: 50 mm; probe diameter: 6/4 mm.
  • Connection: R 1/2"; nominal pressure: PN10.
  • Measuring range for Ni..: -50...160°C [-60...320°F].
  • Accuracy for Ni..: ±0.4°C @ 0°C [±0.7°F @ 32°F].
  • Time constant τ (63%) in a water pipe: typically 2.5 s.
  • Electrical connection: detachable spring terminal block, max. 2.5 mm².
  • Protection rating: IP65 / NEMA 4X.
  • Weight: 0.17 kg.

  • Brand
    Belimo
  • Reference
    01PT-1DH
  • EAN13
    7630498117657

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    Ni1000TK5000
  • Passive temperature sensor output
    Ni1000TK5000
  • Probe length
    50 mm

Techniczna karta katalogowa

Download (1.29MB)

Instrukcja montażu

Download (1.52MB)

Techniczna karta katalogowa – 01PT-1..

Download (1.29MB)

EU Declaration of Conformity – 01PT-1DH

Download (37.84KB)

Environmental Declaration – 01PT..

Download (70.16KB)
