Belimo UM24Y-SR-F-R.1 - damper actuator with analogue control

Belimo UM24Y-SR-F-R.1 - damper actuator with analogue control

Belimo
zł505.53
VAT included
zł411.00 tax excluded

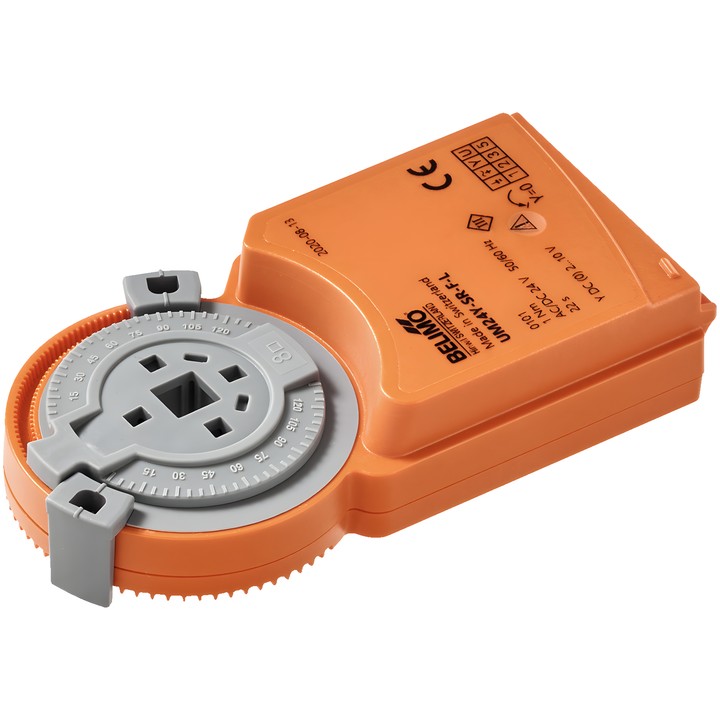

Belimo UM24Y-SR-F-R.1 damper actuator with a torque of 1 Nm, AC/DC 24 V supply and modulating control 2...10 V. The running time is 22 s / 90°, and the mechanical connection is a form-fit connection 8x8 mm.

The device has a 2...10 V position feedback signal, a connecting plug and IP20 protection. The product is offered in a 100 pcs multipack.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo UM24Y-SR-F-R.1 damper actuator

Rotary actuator with modulating control, intended for factory installation in building services equipment. The documentation specifies an air damper size of up to approx. 0.2 m².

Key features and parameters

  • Torque: 1 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 22 s / 90°; angle of rotation: 95°, fixed setting.
  • Motor direction of rotation: clockwise (cw); manual override: No.
  • Mechanical connection: form-fit connection 8x8 mm.
  • Power consumption: 1.5 W during movement, 0.5 W at rest; for cable sizing: 2.5 VA.
  • Electrical connection: Molex Mini-Fit Jr. 39303045 plug. The mating connector on the cable side is not included in the scope of delivery.
  • IEC/EN degree of protection: IP20; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].
  • Multipack: 100 pcs.

  • Brand
    Belimo
  • Reference
    UM24Y-SR-F-R.1
  • EAN13
    7630498122644

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    2.5 VA
  • Power supply control connection
    Connection plug (cable-side mating connector not included)
  • Control type
    Analog
  • Protection rating
    IP20
  • NEMA protection rating
    NEMA 1
  • Enclosure type
    UL Enclosure Type 1
  • Manual override
    No
  • Running time (motor)
    22 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Connection plug
    Molex Mini-Fit Jr. 39303045 connector
  • Torque
    1 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    95°
  • Mechanical connection
    Form-fit connection 8x8 mm

Techniczna karta katalogowa

Download (392.29KB)

Instrukcja montażu

Download (3.4MB)

EU Declaration of Conformity – UM24Y-SR-F-R

Download (41.24KB)

Environmental Declaration – UM..

Download (71.04KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
