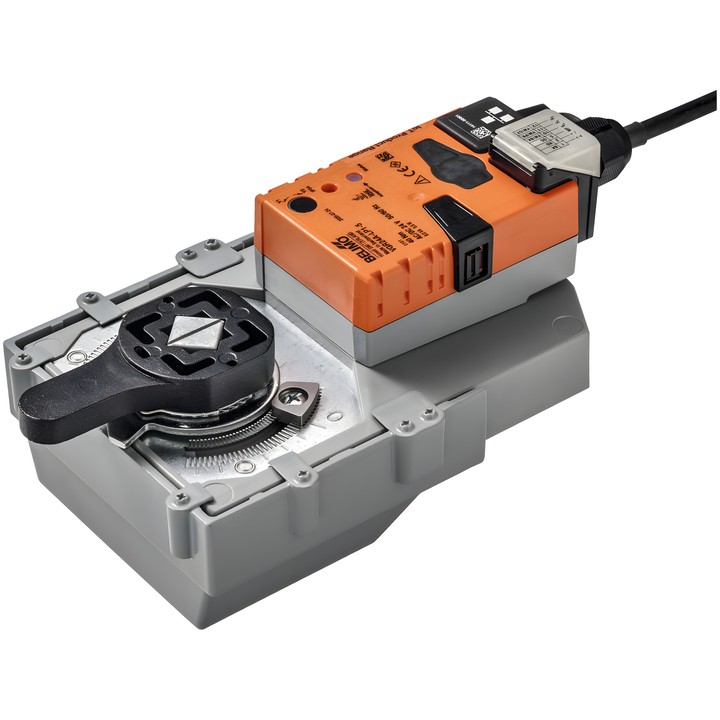

Belimo VGR24A-LP1-5 - rotary actuator for ball valves

Name: Belimo VGR24A-LP1-5 - rotary actuator for ball valves
Brand: Belimo
SKU: VGR24A-LP1-5
Price: 3673.92 PLN
Availability: BackOrder

Belimo

zł3,673.92

VAT included

zł2,986.93 tax excluded

Communicating rotary actuator for ball valves with a torque of 40 Nm, powered by AC/DC 24 V. Supports control via Cloud, BACnet/IP and Modbus TCP, as well as an analogue signal in hybrid mode.

Running time is 90 s / 90° and can be set within a range of 75...270 s. The actuator has an RJ45 Ethernet connection, an F05 flange and IP40 protection.

Delivery in approx. 14 days

Belimo VGR24A-LP1-5

Communicating rotary actuator for ball valves. Enables control via Cloud, BACnet/IP or Modbus TCP. In hybrid mode, it accepts an analogue control signal, while the communication interfaces are used to read and write data points, excluding the control signal.

Key features and parameters

Torque: 40 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
Operating range Y: 2...10 V; adjustable range: 0.5...10 V.
Running time: 90 s / 90°; adjustable running time: 75...270 s.
Communication: Cloud, BACnet/IP, Modbus TCP; Ethernet 10/100 Mbit/s, TCP/IP, integrated web server and RJ45 socket.
Two sensors can be connected, and their signals can be converted for transmission to a higher-level system.
Manual adjustment using a push-button, with the option to lock it; mechanical rotation angle limiters and position indicator.
Power consumption during movement: 5.5 W; at rest: 1.5 W; for cable sizing: 8 VA.
Power and control cable: 1 m, 6x 0.5 mm²; connection flange: F05.
Degree of protection IEC/EN: IP40; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
