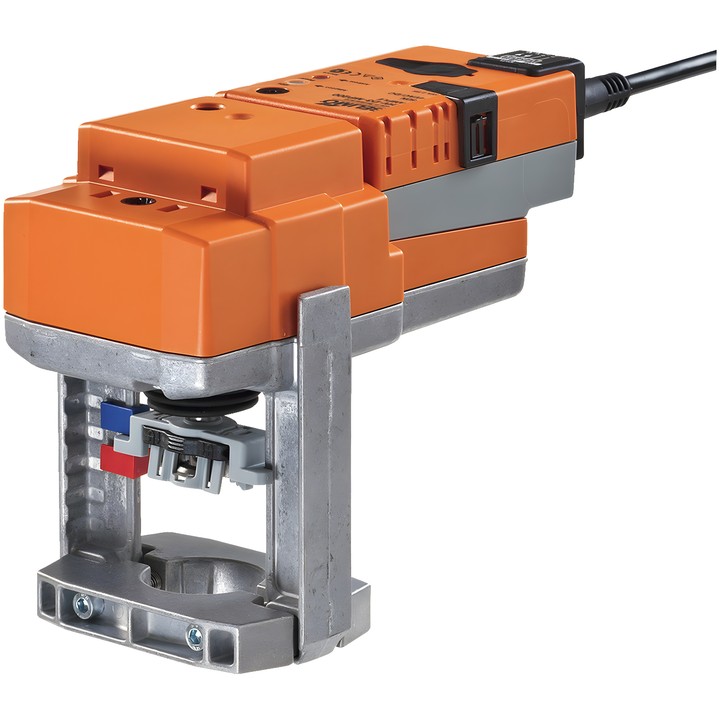

Belimo VNV24A-LP1 - actuator for globe valves

Name: Belimo VNV24A-LP1 - actuator for globe valves
Brand: Belimo
SKU: VNV24A-LP1
Price: 6210.27 PLN
Availability: OutOfStock

Belimo

zł6,210.27

VAT included

zł5,049.00 tax excluded

Communicating actuator for 2- and 3-way globe valves. Force 1000 N, AC/DC 24 V supply, 20 mm stroke and 150 s / 20 mm running time. Supports Cloud, BACnet/IP and Modbus TCP.

Operating range Y is 2...10 V. The actuator has an Ethernet RJ45 connector, manual push-button override and IP40 protection rating.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo VNV24A-LP1 – actuator for globe valves

Communicating actuator designed for 2- and 3-way globe valves. Supports modulating, communicating and hybrid control, as well as communication via Cloud, BACnet/IP and Modbus TCP. It can convert signals from connected sensors for use by the supervisory system.

Key features and specifications

Actuator force: 1000 N; stroke: 20 mm.
Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
Operating range Y: 2...10 V; variable operating range Y: 0.5...10 V.
Motor running time: 150 s / 20 mm; adjustable running time: 90...150 s.
Communication: Cloud, BACnet/IP, Modbus TCP; Ethernet 10/100 Mbit/s, TCP/IP and integrated web server.
Power consumption during operation: 1.5 W; in standby position: 0.5 W; power for cable sizing: 3 VA.
Power and control connection: 1 m cable, 6x 0.5 mm²; Ethernet connection: RJ45 socket.
Manual push-button override with locking option and mechanical position indicator.
IEC/EN protection rating: IP40; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

The actuator allows connection of two sensors: passive, active or switching contacts. Configuration is possible via the integrated web server, communication interfaces or Cloud.
