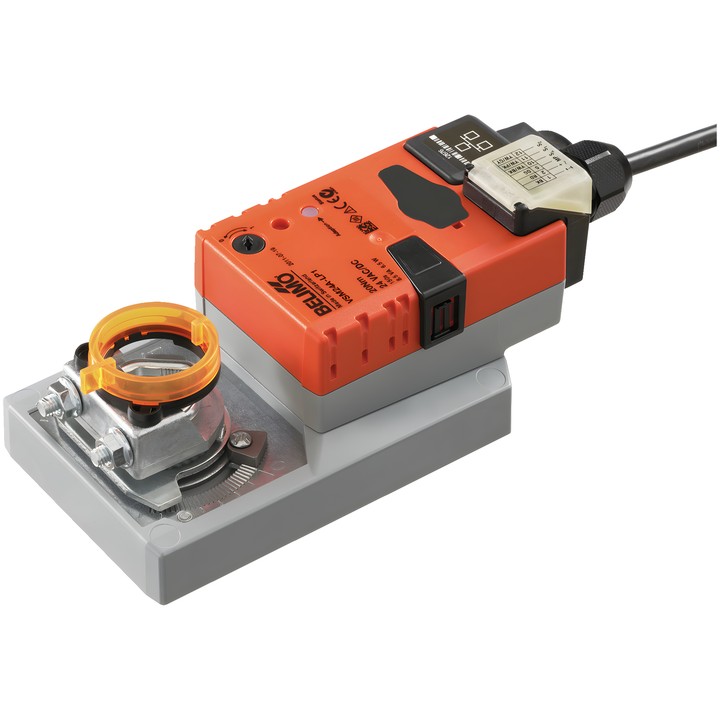

Belimo VSM24A-LP1 - rotary actuator for dampers

Belimo VSM24A-LP1 – actuator for dampers

Rotary actuator designed for air dampers in stationary heating, ventilation and air-conditioning systems. According to the documentation, it is intended for dampers with an area of up to approx. 4 m². It can operate in communication mode or hybrid mode, in which the control signal is supplied in analogue form.

Key features

• Torque: 20 Nm; nominal voltage: AC/DC 24 V.
• Communication: Cloud, BACnet/IP, Modbus TCP; Ethernet RJ45 connection and integrated web server.
• Operating range Y: 2...10 V; adjustable operating range Y: 0.5...10 V.
• Motor running time: 150 s / 90°; adjustable running time: 86...346 s.
• Rotation angle: 95°, with the option of limiting it using mechanical stops on both sides.
• Manual adjustment using a push-button with locking option; direction of movement selected by a 0/1 switch.
• Reversible universal mounting clamp for 10...20 mm.
• Can connect two sensors and convert their signals for transmission to a higher-level system.
• Power consumption during operation: 6 W; at rest: 1.4 W; sizing power for cable selection: 8 VA.
• Power and control connection: 1 m cable, 6x 0.5 mm²; IEC/EN protection rating: IP40.
• Ambient temperature: -30...50°C [-22...122°F].
