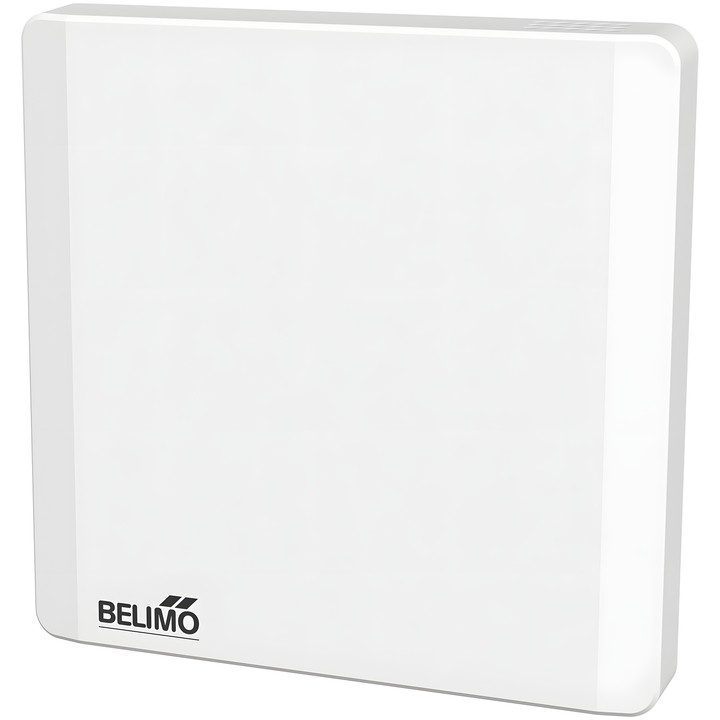

Belimo 01RT-1D-0 - passive room temperature sensor

Belimo 01RT-1D-0 – room temperature sensor

Passive sensor designed to measure room air temperature. The 01RT-1D-0 version has a Ni1000TK5000 output signal.

Key specifications

• Measured value: temperature; medium: air.
• Measuring range: 0...50°C [32...122°F].
• Measuring current for Ni1000TK5000: <0.3 mA @ 0°C [32°F].
• Accuracy for Ni.. sensors: ±0.4°C @ 0°C [±0.7°F @ 32°F].
• Time constant τ (63%) in a room: typically 360 s.
• Electrical connection: spring terminal 0.5...1.5 mm².
• IEC/EN protection rating: IP30; IEC/EN protection class: III, PELV.
• Housing: PC, white, RAL 9003.

Cable entry openings are located at the rear and at the top and bottom of the housing. Screws are included.
