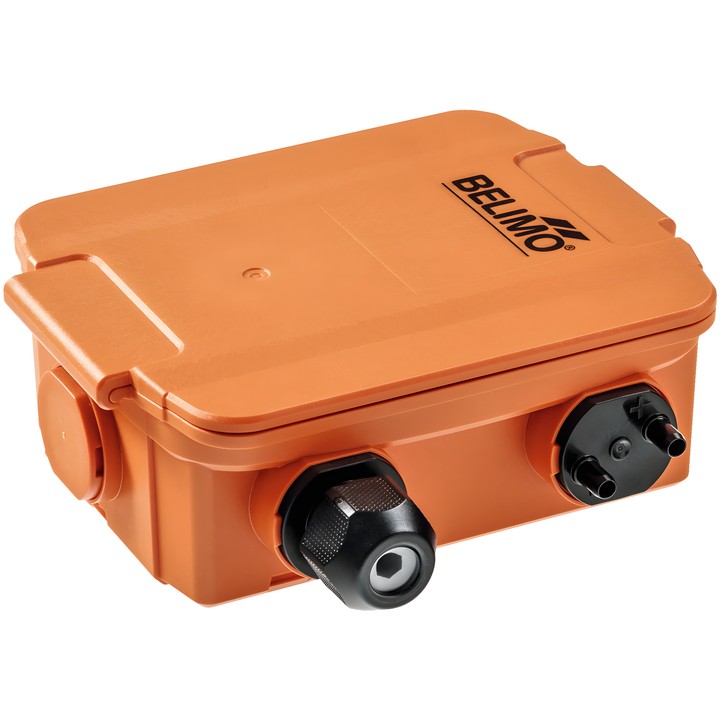

Belimo 22ADP-164 – air differential pressure sensor

The sensor is used to monitor positive pressure, negative pressure or differential pressure in air and other non-flammable, non-aggressive gases. In HVAC systems, it can be used to monitor air filters, fan V-belts, and fire and smoke dampers.

Key features

  • Pressure measuring range: -100...2500 Pa; 8 selectable measuring ranges.
  • Measured values: differential pressure and volumetric flow.
  • Communication: BACnet MS/TP.
  • Two analogue outputs: 0...5 V or 0...10 V, selected by switch; minimum resistance 10 kΩ.
  • Rated voltage: AC/DC 24 V.
  • Adjustable typical response time: 0.8 s or 4.0 s.
  • Degree of protection: IP65 / NEMA 4X.
  • Electrical connection: plug-in terminal strip with spring terminals, max. 2.5 mm².
  • Included: mounting plate, mounting kit, 2 m PVC tube and 2 plastic duct connections.

The 22ADP-164 version is supplied without an LCD display.

  • Brand
    Belimo
  • Reference
    22ADP-164
  • EAN13
    7630498117794

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure Volume flow
  • Output signal
    BACnet 0...5 V 0...10 V
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    BACnet MS/TP
