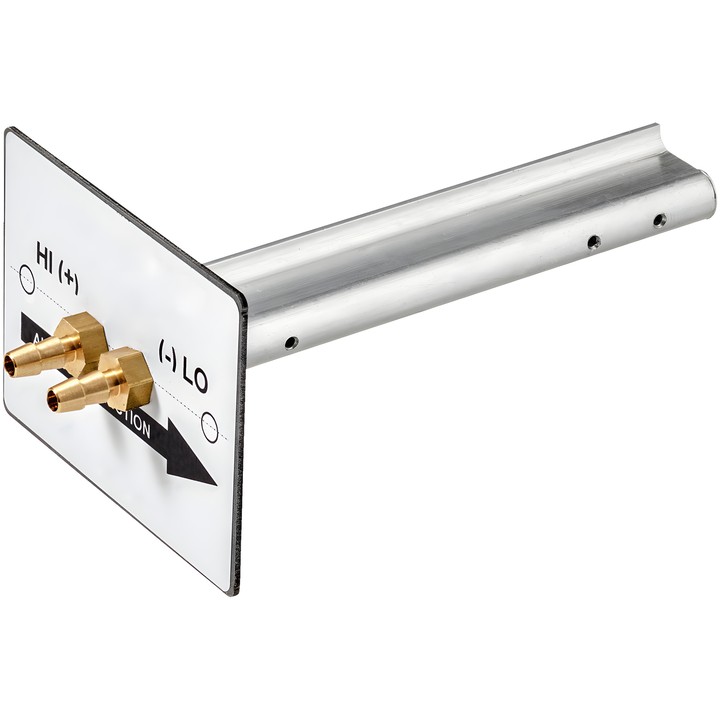

Belimo EXT-AC-R630 - volumetric airflow probe

Belimo EXT-AC-R630 - volumetric airflow probe

Belimo
zł899.13
VAT included
zł731.00 tax excluded

Probe for measuring volumetric airflow in a round duct. The probe is 630 mm long; measurement is performed in combination with a 22ADP-.. differential pressure sensor at air velocities from 2 to 25 m/s.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EXT-AC-R630

Volumetric airflow probe designed for round ducts. It is used for measurement in combination with a 22ADP-... differential pressure sensor.

Key data

  • Probe length: 630 mm.
  • Air velocity range for measurement: 2 to 25 m/s.
  • Medium: air.
  • Medium temperature: 5...95°C [41...203°F].
  • Probe material: aluminium.
  • Dimension B: 25 mm.
  • Weight: 0.31 kg.

During commissioning, enter the settings required for correct volumetric airflow measurement on the 22ADP-.. differential pressure sensor: change the fan manufacturer to AirConcepts, set the k-factor in accordance with the probe installation instructions, and adjust the lower and upper volumetric airflow values. Configuration is possible using the Belimo Duct Sensor Assistant App or via bus communication.

  • Brand
    Belimo
  • Reference
    EXT-AC-R630
  • EAN13
    7630498120039

  • Probe length
    630 mm

Techniczna karta katalogowa

Download (827.77KB)

Instrukcja montażu

Download (621.51KB)

Techniczna karta katalogowa – EXT-AC-..

Download (832.18KB)
