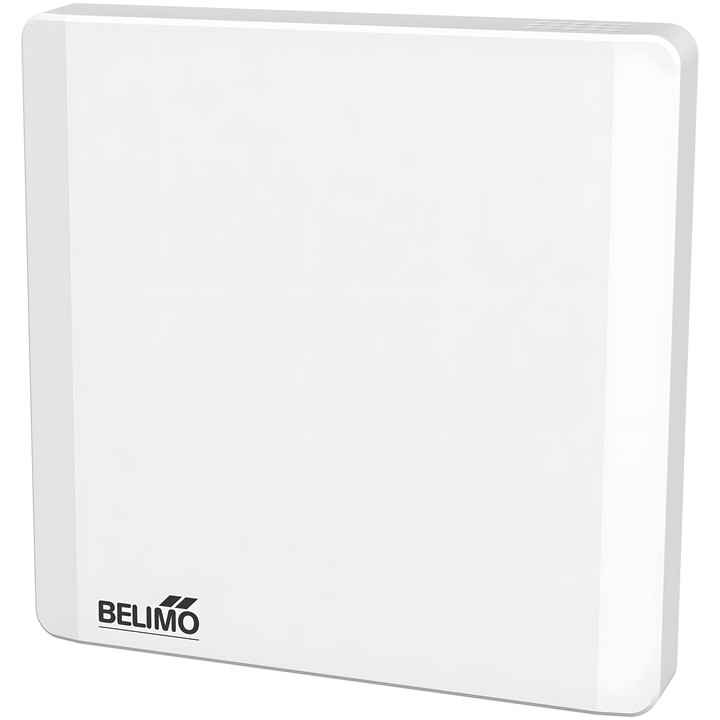

Belimo 01RT-1L-0 - passive room temperature sensor

Belimo 01RT-1L-0 room temperature sensor

Passive sensor for measuring room air temperature. Version 01RT-1L-0 has an NTC10k (10k2) output signal.

Key technical data

• Measuring range: 0...50°C [32...122°F].
• Measuring current for NTC10k (10k2): <2 mA @ 25°C [77°F].
• NTC accuracy: ±0.2°C @ 25°C [±0.35°F @ 77°F].
• Time constant τ (63%) in a room: typically 360 s.
• Electrical connection: spring terminal 0.5...1.5 mm².
• IEC/EN protection rating: IP30; IEC/EN protection class: III, PELV.
• Ambient temperature: 0...50°C [32...122°F]; ambient humidity: max. 95% RH, non-condensing.
• Housing material: PC, white, RAL 9003.

Cable routing openings are located at the rear and at the top and bottom of the housing. Screws are included.
