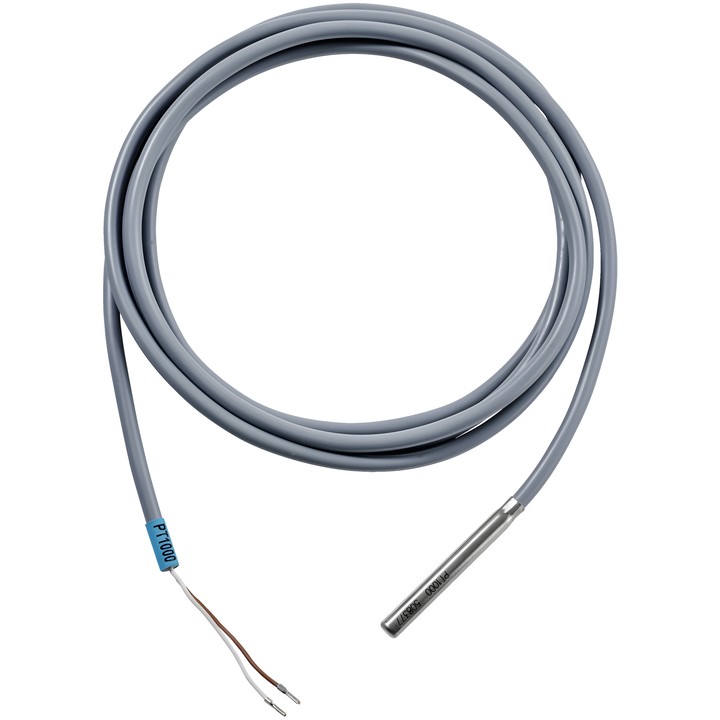

Belimo 01CT-1DH - passive temperature sensor with cable

Belimo 01CT-1DH - passive temperature sensor with cable

Belimo
zł73.43
VAT included
zł59.70 tax excluded

Passive temperature sensor with Ni1000TK5000 output signal, a 50 mm long probe and a diameter of 6 mm. Supplied with a 2 m, 2-wire cable.

Can be used as a duct sensor with a mounting flange or as an immersion sensor in combination with a thermowell.

Delivery in approx. 14 days
Share

Belimo 01CT-1DH – passive temperature sensor

Cable sensor for measuring air and water temperature. The probe is made of stainless steel and the cable of PVC. Installation in a duct requires a mounting flange; use as an immersion sensor requires a thermowell.

Key features

  • Output signal: Ni1000TK5000.
  • Probe length: 50 mm; probe diameter: 6 mm.
  • Electrical connection: 2 m, 2-wire cable.
  • Measuring range: -35...100°C [-30...210°F].
  • Measuring current for Ni1000TK5000: <0.3 mA @ 0°C [32°F].
  • Accuracy for Ni..: ±0.4°C @ 0°C [±0.7°F @ 32°F].
  • Protection rating: IP67 and NEMA 4X.

The mounting flange and thermowell are listed in the documentation as accessories. The sensor is intended for stationary heating, ventilation and air-conditioning installations.

  • Brand
    Belimo
  • Reference
    01CT-1DH
  • EAN13
    7630498100147

  • Electrical connection
    Cable
  • Measured values
    Temperature
  • Output signal
    Ni1000TK5000
  • Passive temperature sensor output
    Ni1000TK5000
  • Probe length
    50 mm

Techniczna karta katalogowa

Download (884.87KB)

Instrukcja montażu

Download (962.72KB)

Techniczna karta katalogowa – 01CT-1..

Download (890.02KB)

Environmental Declaration – 01CT..

Download (71.66KB)
