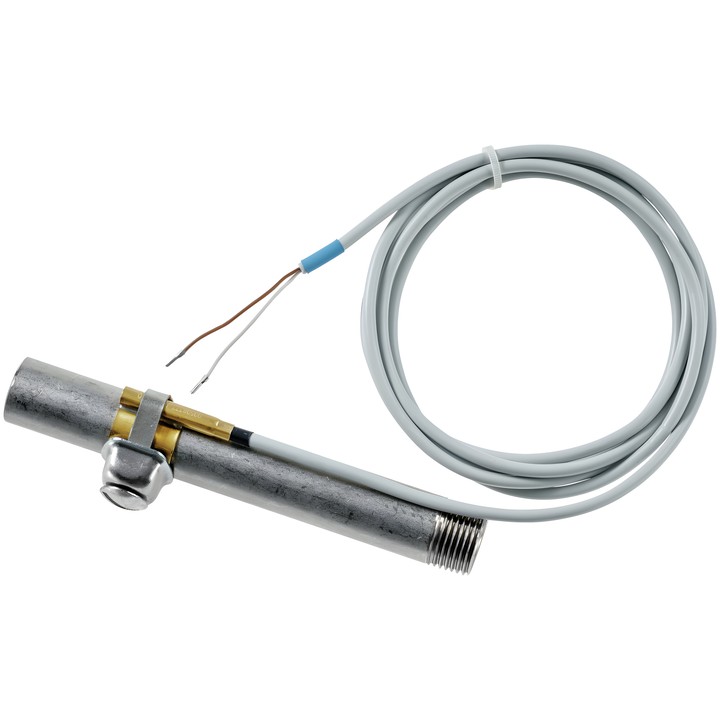

Belimo 01ST-1Q3 - passive contact temperature sensor

Name: Belimo 01ST-1Q3 - passive contact temperature sensor
Brand: Belimo
SKU: 01ST-1Q3
Price: 94.10 PLN
Availability: BackOrder

Belimo

zł94.10

VAT included

zł76.50 tax excluded

Belimo 01ST-1Q3 passive contact temperature sensor with NTC20k output signal, designed to measure temperature on pipes and curved surfaces. Measuring range: -35...100°C [-30...210°F].

The 6 mm diameter probe is connected by a 2 m, 2-wire cable. A mounting strap for pipes ø20...110 mm is included.

Delivery in approx. 14 days

Belimo 01ST-1Q3 – contact temperature sensor

Passive sensor for measuring temperature on pipes and curved surfaces in stationary heating, ventilation and air conditioning installations. Model 01ST-1Q3 has an NTC20k output signal.

Key features

Measured value: temperature; measuring range: -35...100°C [-30...210°F].
Passive temperature sensor output signal: NTC20k.
Probe diameter: 6 mm; PVC cable and brass probe.
Electrical connection: 2 m, 2-wire cable.
IEC/EN protection rating: IP65.
Includes A-22P-A47 mounting strap for pipes ø20...110 mm.

For NTC20k, the measuring current is <0.5 mA @ 25°C [77°F]. The stated accuracy for NTC.. sensors is ±0.2°C @ 25°C [±0.35°F @ 77°F]. The typical time constant τ (63%) on a water pipe, when using a thermal contact-enhancing fluid, is 17 s.
