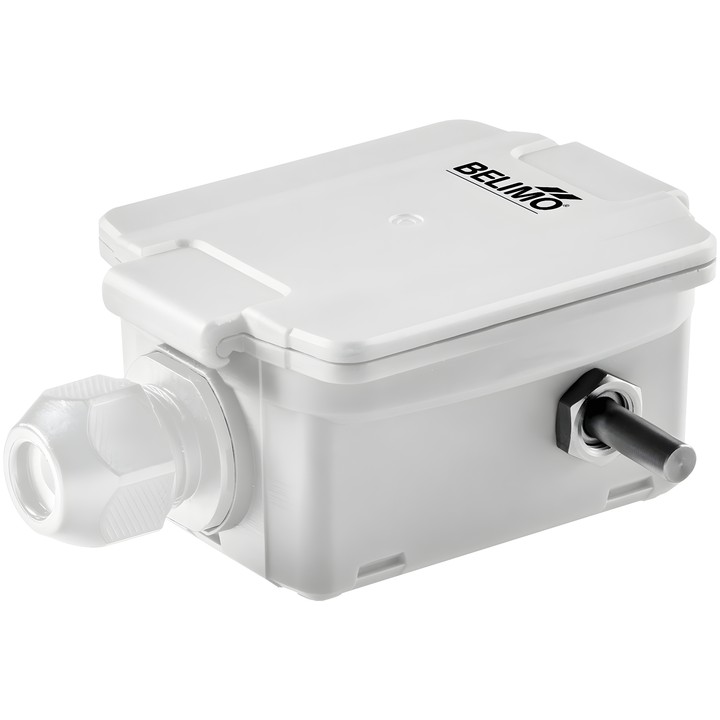

Belimo 01UT-1B0X - passive outdoor temperature sensor

Belimo 01UT-1B0X is a passive sensor with an external probe for measuring outdoor air temperature. The output signal of this variant is Pt1000.

Key features

• Measuring range: -35...50°C [-30...120°F].
• Probe length: 25 mm; probe diameter: 6 mm.
• Temperature accuracy: Class B, ±0.3°C @ 0°C [±0.5°F @ 32° F].
• Pt1000 measuring current: <0.3 mA @ 0°C [32°F].
• Protection rating: IP65 / NEMA 4X.
• Electrical connection: pluggable spring terminal block, max. 2.5 mm²; cable entry with strain relief ø6...8 mm.
• Typical time constant τ (63%) indoors: 420 s.

The set includes a mounting plate A-22D-A09, plugs and screws.
