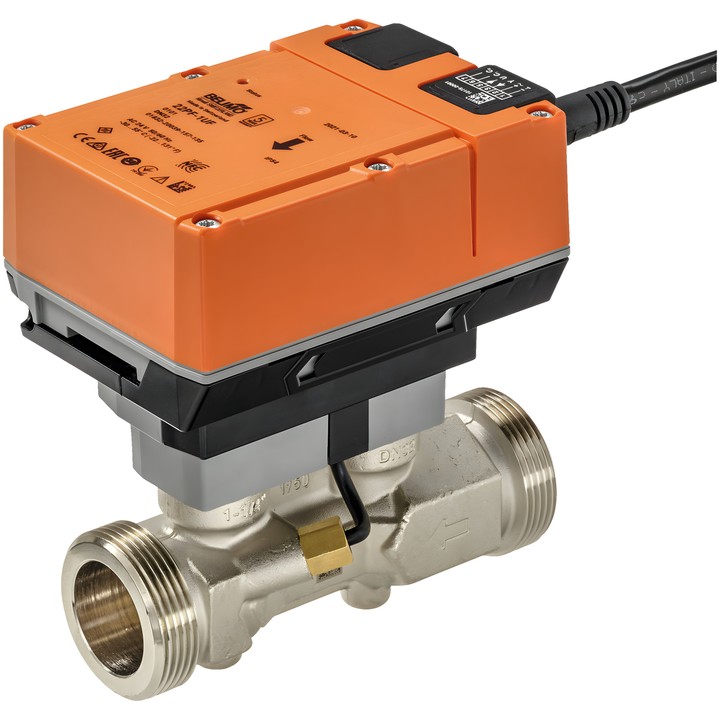

The 22PF-1UF uses ultrasonic flow measurement in closed cold and hot water systems. It is designed for water and water-glycol mixtures with a concentration of up to max. 60% vol. The sensor continuously measures the glycol content in the medium and takes it into account when measuring flow.

Key features

• Size DN 32, PN 25; G 1 1/2" external thread in accordance with ISO 228-1.
• Full-scale measuring range FS 2.0 l/s (7.2 m³/h); theoretical Kvs value 16.0 m³/h.
• Measured values: flow and temperature; flow totalisation available.
• AC/DC 24 V supply; electrical connection via 6x 0.75 mm² cable.
• Communication: BACnet MS/TP, Modbus RTU, MP-Bus.
• Voltage output: 1 x 0...10 V, 0.5...10 V, 2...10 V or user-defined range; factory setting DC 0...10 V.
• Configuration via Belimo Assistant 2; access via NFC.
• IP54 degree of protection; medium temperature -20...120°C.

For the DN 32 version, the documentation lists insulation shell A-22PEM-A02 as included, with the exception that the shell is not included in the Asia-Pacific region.
