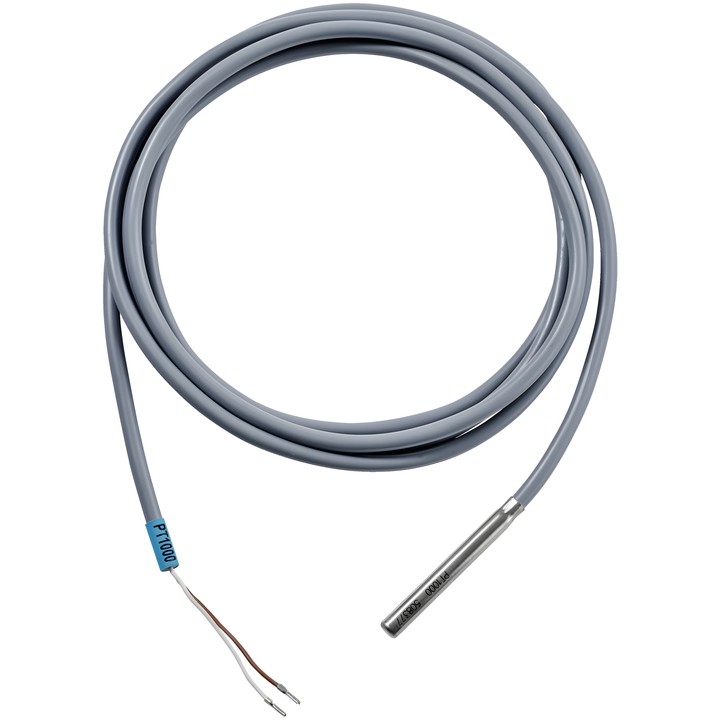

Belimo 01CT-1BH - passive temperature sensor with cable

Belimo 01CT-1BH - passive temperature sensor with cable

Belimo
zł63.10
VAT included
zł51.30 tax excluded

Belimo 01CT-1BH passive temperature sensor with Pt1000 output signal. The stainless steel probe is 50 mm long and 6 mm in diameter; the PVC cable is 2 m long and has 2 wires.

The sensor can be used in an air duct with a mounting flange or as an immersion sensor in combination with a thermowell.

Delivery in approx. 14 days
Share

Belimo 01CT-1BH – passive temperature sensor

Cable sensor for measuring the temperature of air or water. A mounting flange is used for installation in an air duct, while a thermowell is used for immersion measurement.

Key features

  • Output signal: Pt1000.
  • Measuring range: -35...100°C [-30...210°F].
  • Stainless steel probe: length 50 mm, diameter 6 mm.
  • Electrical connection: 2 m PVC cable, 2-wire.
  • Measuring current for Pt1000: <0.3 mA @ 0°C [32°F].
  • Accuracy for Pt.. Class B: ±0.3°C @ 0°C [±0.5°F @ 32°F].
  • Protection rating: IP67 (IEC/EN) and NEMA 4X (NEMA/UL).
  • IEC/EN protection class: III, Protective Extra-Low Voltage (PELV).

The mounting flange and thermowell are listed in the documentation as accessories. With a 2-wire connection, account for the effect of measuring current and long cable resistance on measurement accuracy.

  • Brand
    Belimo
  • Reference
    01CT-1BH
  • EAN13
    7630498100109

  • Electrical connection
    Cable
  • Measured values
    Temperature
  • Output signal
    Pt1000
  • Passive temperature sensor output
    Pt1000
  • Probe length
    50 mm

Techniczna karta katalogowa

Download (884.87KB)

Instrukcja montażu

Download (962.72KB)

Techniczna karta katalogowa – 01CT-1..

Download (890.02KB)

Environmental Declaration – 01CT..

Download (71.66KB)
