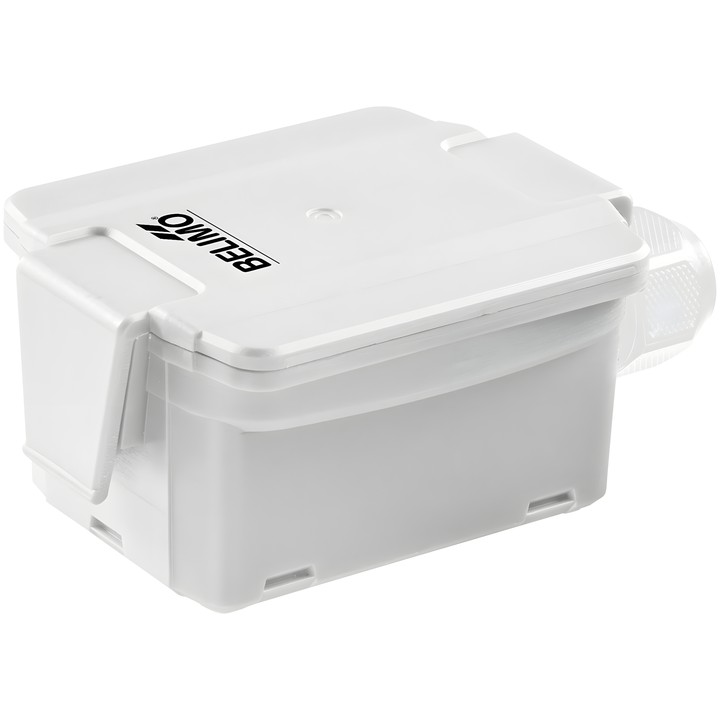

Belimo 01UT-1C is a passive outdoor temperature sensor with a Ni1000 output signal. It is designed to measure outdoor air temperature.

The measuring range is -35...50°C [-30...120°F]. The enclosure has an IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days
Share

Belimo 01UT-1C – outdoor temperature sensor

Passive sensor with an internal Ni1000 sensing element, designed to measure outdoor air temperature.

Key features

  • Passive temperature sensor output signal: Ni1000.
  • Measuring range: -35...50°C [-30...120°F].
  • Accuracy for Ni.. sensors: ±0.4°C @ 0°C [±0.7°F @ 32°F].
  • Ni1000 measuring current: <0.3 mA @ 0°C [32°F].
  • Protection rating: IP65 / NEMA 4X.
  • Electrical connection: pluggable spring terminal block, max. 2.5 mm².
  • Cable gland with strain relief: ø6...8 mm.
  • Typical time constant τ (63%) indoors: 854 s.

The set includes an A-22D-A09 mounting plate, dowels and screws.

  • Brand
    Belimo
  • Reference
    01UT-1C
  • EAN13
    7630498100710

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    Ni1000
  • Passive temperature sensor output
    Ni1000
