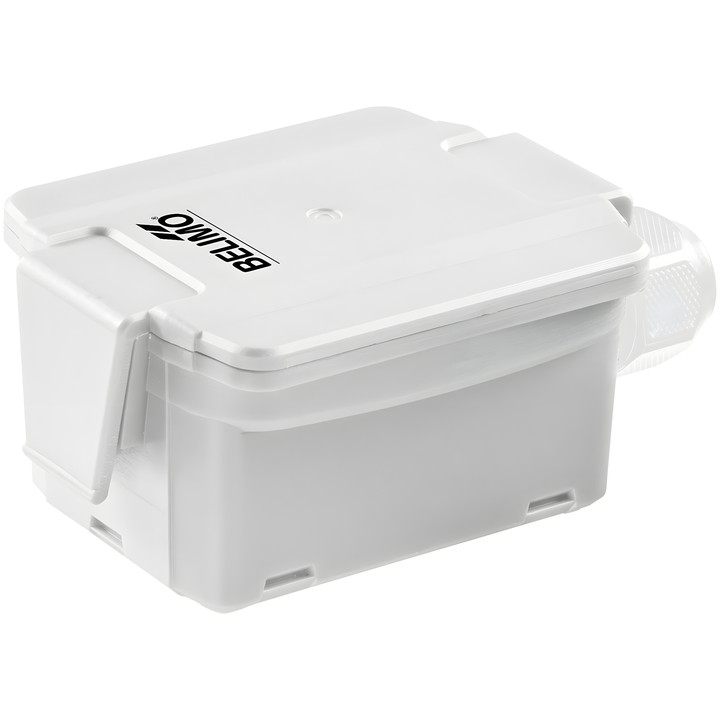

Belimo 01UT-1L - passive outdoor temperature sensor
Price:
zł86.72
VAT included
zł70.50 tax excluded
Passive sensor for measuring outdoor air temperature, with NTC10k (10k2) output signal. Measuring range: -35...50°C [-30...120°F]. Enclosure protection rating IP65 / NEMA 4X.
Belimo 01UT-1L – outdoor temperature sensor
Passive sensor with an internal sensing element, designed to measure outdoor air temperature. The technical data sheet specifies its use in stationary heating, ventilation and air conditioning systems.
Key features
- Passive temperature sensor output signal: NTC10k (10k2).
- Measuring range: -35...50°C [-30...120°F].
- Accuracy for NTC..: ±0.2°C @ 25°C [±0.35°F @ 77°F].
- Measuring current for NTC10k (10k2): <2 mA @ 25°C [77°F].
- Protection rating: IP65 / NEMA 4X.
- Electrical connection: plug-in terminal strip with spring terminals, max. 2.5 mm².
- Cable gland with strain relief: ø6...8 mm.
- Included: A-22D-A09 mounting plate, plugs and screws.
-
Brand
-
Reference01UT-1L
-
EAN137630498100741
-
Electrical connectionTerminals
-
Measured valuesTemperature
-
Output signalNTC10k (10k2)
-
Passive temperature sensor outputNTC10k (10k2)
