Belimo 20DTS-1P5 - frost protection thermostat with 6 m capillary

Belimo 20DTS-1P5 - frost protection thermostat with 6 m capillary

Belimo
zł1,152.87
VAT included
zł937.29 tax excluded

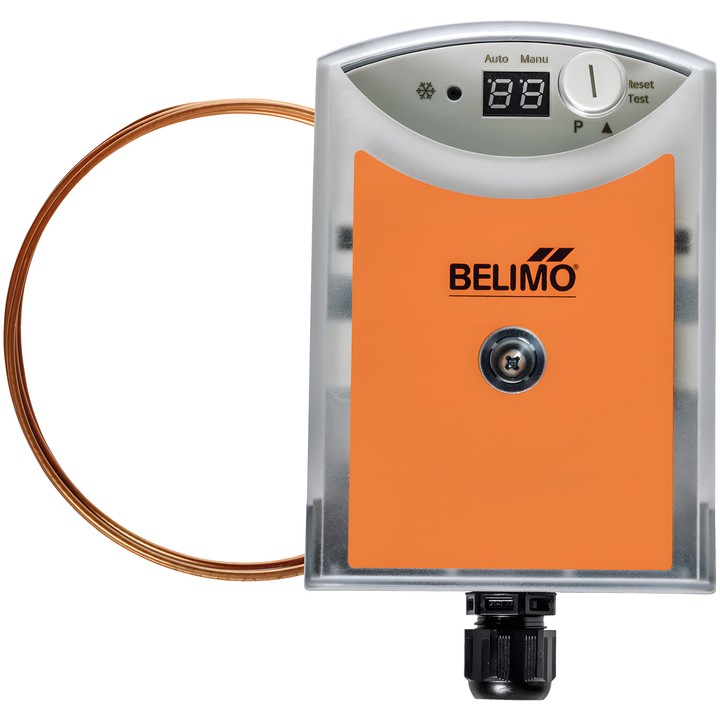

Active Belimo 20DTS-1P5 frost protection thermostat with start-up function and 6 m capillary. It monitors the temperature of water and air heaters in ventilation and air-conditioning systems.

AC 24 V supply, 0...10 V output signals and a volt-free changeover contact. Automatic or manual reset of the tripped state is available.

Delivery in approx. 14 days
Share

Belimo 20DTS-1P5 frost protection thermostat

The device monitors the temperature of water and air heaters in ventilation and air-conditioning systems. The capillary detects the lowest temperature occurring over a section of at least 250 mm. The start-up function uses a 0...10 V valve control signal; the relay contact enables the fans to be switched off and the dampers to be closed when there is a risk of frost.

Key features

  • 6 m capillary.
  • Nominal voltage AC 24 V; voltage range AC 19.2...26.4 V.
  • Temperature measuring range 0...15°C [32...59°F]; factory setting 5°C [41°F].
  • Trip threshold setting range 1...10°C.
  • Temperature sensor output 0...10 V (≙ 0...15°C) and valve control output 0...10 V (max. 1 mA).
  • Volt-free changeover contact; max. switching current 6(2) A @ AC 230 V / 6 A @ DC 24 V.
  • Automatic, manual and test modes; automatic or manual reset of the tripped state.
  • LED segment display and red LED indicating risk of frost.
  • Spring terminals for wires max. 2.5 mm²; degree of protection IEC/EN IP42.

Includes a mounting kit with 6 brackets, type A-22D-A08.

  • Brand
    Belimo
  • Reference
    20DTS-1P5
  • EAN13
    7630498100789

  • Electrical connection
    Terminals
  • Measured values
    Temperature Frost
  • Output signal
    Switch 0...10 V
  • Thermostat output note
    Max. switching current 6(2) A @ AC 230 V / 6 A @ DC 24 V
  • AC/DC voltage
    AC 24 V
  • Temperature measuring range
    0...15°C [32...59°F] Factory setting: 5°C [41°F]
  • Active sensor output note
    Temperature sensor: 0...10 V (≙ 0...15°C) Valve control: 0...10 V (max. 1 mA)
  • Display type
    LED

Techniczna karta katalogowa

Download (2.02MB)

Instrukcja montażu

Download (2.43MB)

Techniczna karta katalogowa – 20DTS-1P..

Download (2.03MB)

EU Declaration of Conformity – 20DTS-1P

Download (38.64KB)

Environmental Declaration – 20DTS..

Download (70.29KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
