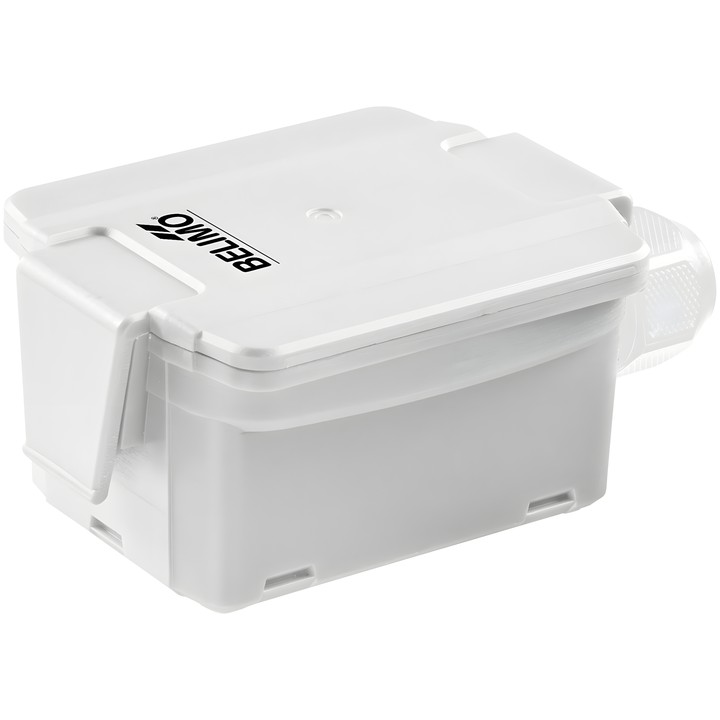

Belimo 01UT-1N - passive outdoor temperature sensor

Name: Belimo 01UT-1N - passive outdoor temperature sensor
Brand: Belimo
SKU: 01UT-1N
Price: 132.84 PLN
Availability: BackOrder

Belimo

zł132.84

VAT included

zł108.00 tax excluded

Belimo 01UT-1N passive outdoor temperature sensor for measuring air temperature. Output signal: NTC10k Carel; measuring range: -35...50°C [-30...120°F].

Enclosure protection rating IP65 / NEMA 4X. Electrical connection via a detachable spring terminal block, max. 2.5 mm².

Delivery in approx. 14 days

Belimo 01UT-1N – outdoor temperature sensor

Passive sensor with an internal sensing element, designed to measure outdoor air temperature. Typical applications listed in the documentation include cold stores, greenhouses, production plants and warehouses.

Key features

Passive temperature sensor output signal: NTC10k Carel.
Measuring range: -35...50°C [-30...120°F].
Measuring current for NTC10k Carel: <0.2 mA @ 25°C [77°F].
Accuracy for NTC sensors: ±0.2°C @ 25°C [±0.35°F @ 77°F].
Typical time constant τ (63%) indoors: 854 s.
Protection rating: IP65 / NEMA 4X.
Electrical connection: detachable spring terminal block, max. 2.5 mm²; cable gland with strain relief for ø6...8 mm cable.

The set includes an A-22D-A09 mounting plate, plugs and screws.
