Belimo 22ADP-184A - air differential pressure sensor

Belimo 22ADP-184A - air differential pressure sensor

Belimo
zł1,156.82
VAT included
zł940.50 tax excluded

Air differential pressure sensor with Auto-Zero function and 8 selectable measuring ranges. Measuring range: -100...2500 Pa; output signals: 0...5 V, 0...10 V or 4...20 mA.

AC/DC 24 V supply, IP65 / NEMA 4X protection rating. Supplied with mounting plate, 2 duct connections and 2 m PVC tubing.

Delivery in approx. 14 days
Share

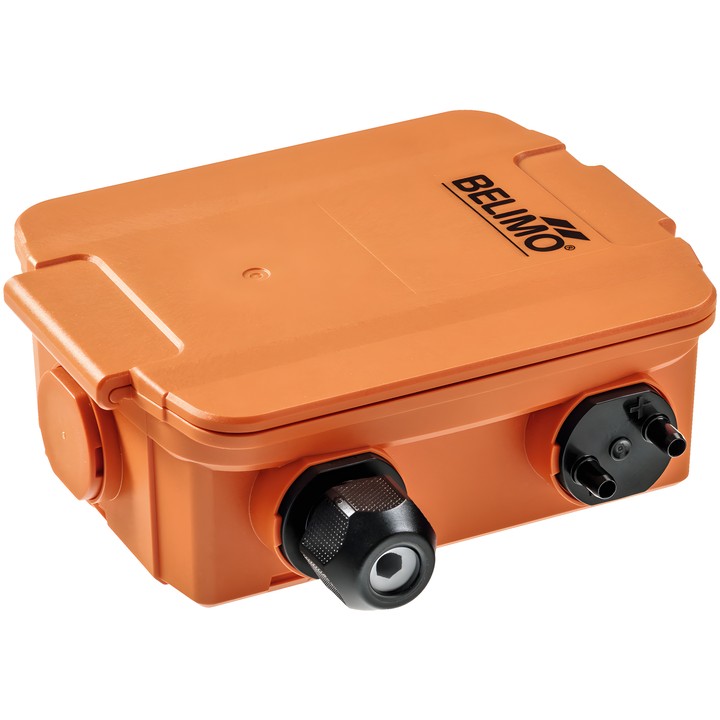

Belimo 22ADP-184A air differential pressure sensor

Transmitter for monitoring the differential pressure of air and other non-flammable, non-aggressive gases in stationary HVAC installations. The 22ADP-184A version features the Auto-Zero automatic zeroing function.

Key features and specifications

  • Measuring range: -100...2500 Pa (-0.4...10 inch WC); 8 selectable measuring ranges.
  • Output signals: 0...5 V, 0...10 V or 4...20 mA; 0...5/10 V voltage output selectable via switch.
  • Rated voltage: AC/DC 24 V.
  • Auto-Zero: automatic zero-point calibration every 10 minutes.
  • Typical response time: selectable at 0.8 s or 4.0 s.
  • Electrical connection: plug-in terminal block with spring terminals, max. 2.5 mm².
  • Enclosure protection rating: IP65 / NEMA 4X.
  • Supplied with: mounting plate, duct connection set with 2 m PVC tubing and 2 plastic connections, plus plugs and screws.

When the voltage output is switched from 0...10 V to 0...5 V, the current signal range changes from 4...20 mA to 4...12 mA.

  • Brand
    Belimo
  • Reference
    22ADP-184A
  • EAN13
    7630498100918

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    0...5 V 0...10 V 4...20 mA
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Current output power [Range]
    1x 4...20 mA, max. resistance 500 Ω

Techniczna karta katalogowa

Download (3.55MB)

Instrukcja montażu

Download (993.72KB)

Techniczna karta katalogowa – 22ADP-184..

Download (3.56MB)

EU Declaration of Conformity – 22ADP-184A

Download (40.38KB)

Environmental Declaration – 22ADP..

Download (72.08KB)
