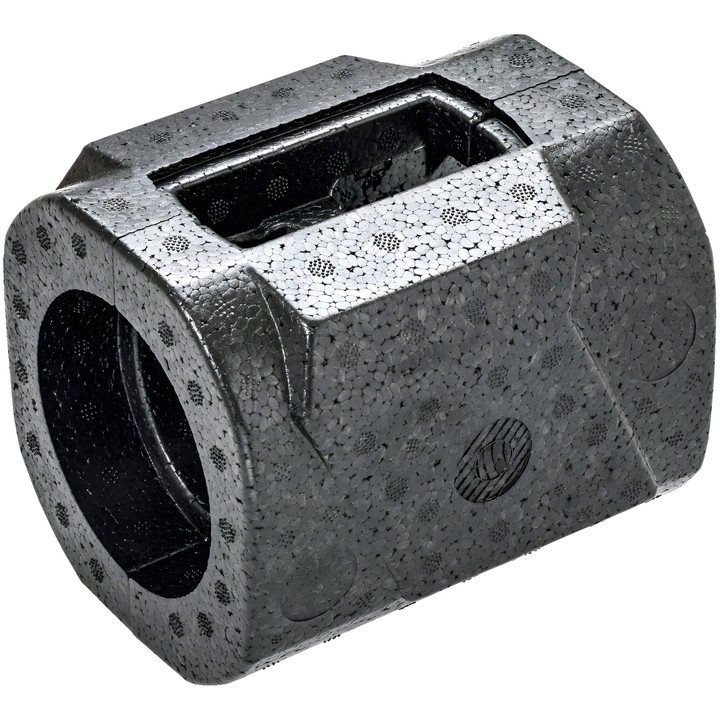

Belimo A-22PEM-A02 - insulation cover for thermal energy meter

Belimo A-22PEM-A02 insulation cover

Accessory for 22PE.. DN 32...50 thermal energy meter, intended exclusively for non-condensing applications.

Key features and data

• Suitable for: 22PE.. DN 32...50.
• Easy installation using hook-and-loop tape; the cover can also be fitted or removed at a later date.
• Thermal conductivity: 0.035 W/mK.
• Material: polyethylene foam (PE-3015 according to EN 12667:2001 / EN 12664:2001).
• Weight: 0.086 kg.

This accessory is designed for use in stationary heating, ventilation and air-conditioning systems. Installation may only be carried out by authorised specialists in compliance with applicable regulations.
