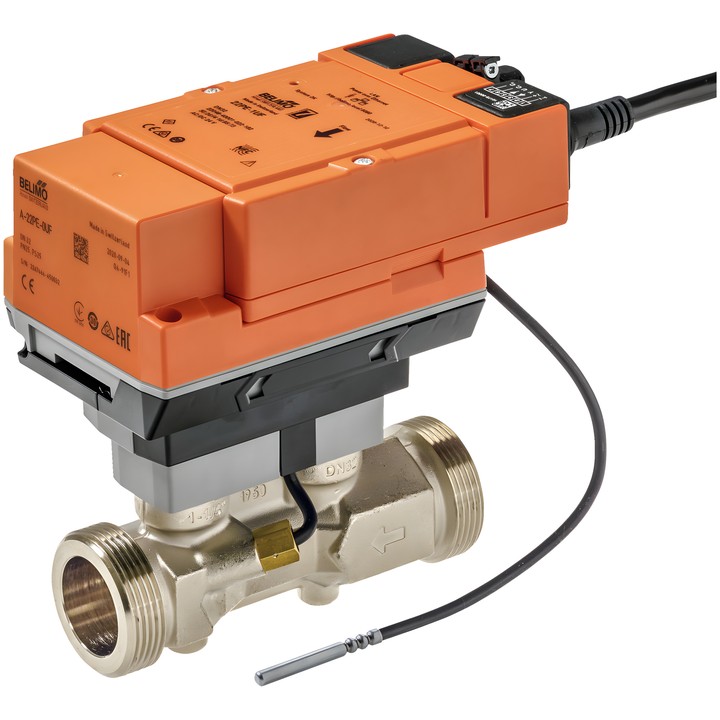

Belimo 22PE-1UG thermal energy meter

The device measures thermal energy based on volumetric flow and the temperature difference between the supply and return in a closed heating or cooling circuit. It can operate as a heat meter, cooling meter, or combined heating and cooling meter. The flow sensor uses the ultrasonic measurement principle; one temperature sensor is integrated and the other is external.

Key features

• DN 40, PN 25; G 2" external thread in accordance with ISO 228-1.
• Nominal flow rate qp 10 m³/h, maximum qs 20 m³/h and minimum qi 0.1 m³/h.
• Flow and temperature measurement; automatic measurement of glycol content and glycol compensation.
• Fluid: water or water with up to 60% vol. glycol.
• AC/DC 24 V power supply; can also be powered via PoE.
• Communication: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud; M-Bus via G-22PEM-A01 converter.
• Voltage output: 1 x 0...10 V, 0.5...10 V, 2...10 V.
• Configuration via Belimo Assistant 2 or the integrated web server; the NFC interface enables access using a compatible mobile device.
• Fluid temperature -20...120°C; ambient temperature -30...55°C.

During commissioning, installation on the supply or return side of the system can be selected. Install in accordance with the flow direction marked on the housing; suspended installation of the sensor is not permitted.
