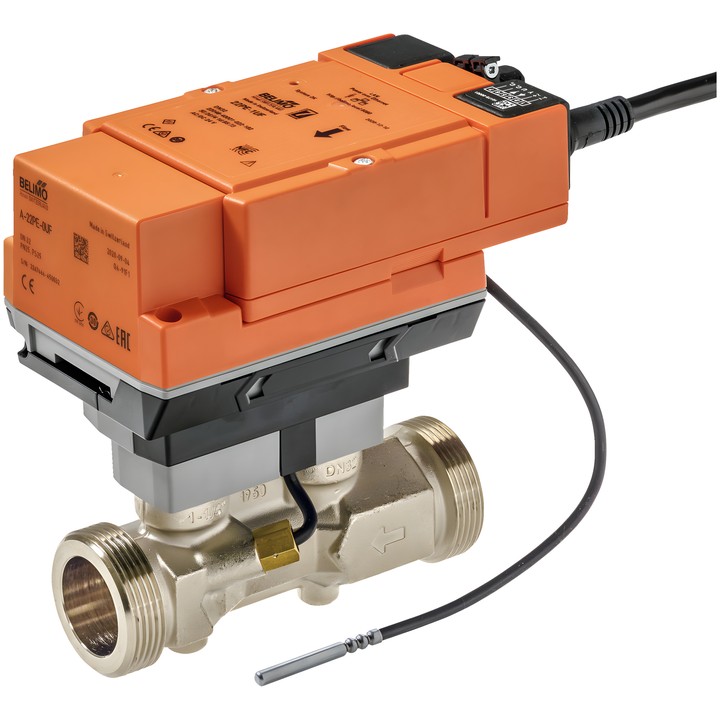

Thermal energy meter for measuring energy in a closed heating or cooling circuit. DN 15, PN 25, qp 1.5 m³/h model measures flow ultrasonically and measures temperature.

AC/DC 24 V power supply; communication via BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud. Supports automatic glycol content compensation.

Delivery in approx. 14 days
Share

Belimo 22PE-1UC – thermal energy meter

The device calculates thermal energy based on volumetric flow and the temperature difference in a closed heating or cooling circuit. It can operate as a heat meter, cooling meter or combined heating and cooling meter.

Key features and specifications

  • DN 15, PN 25; G 3/4" external thread in accordance with ISO 228-1.
  • Nominal flow qp 1.5 m³/h, maximum flow qs 3 m³/h and minimum flow qi 0.015 m³/h.
  • Ultrasonic flow measurement; measured values: flow and temperature.
  • Medium: water or water with up to max. 60% vol. glycol; automatic glycol content measurement and compensation for its effect on energy measurement.
  • AC/DC 24 V power supply; can also be powered via PoE (Power over Ethernet).
  • Communication: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud; M-Bus via G-22PEM-A01 converter.
  • Voltage output: 1 x 0...10 V, 0.5...10 V, 2...10 V.
  • Configuration via Belimo Assistant 2 or the integrated web server; NFC interface.
  • Insulation cover for DN 15...25 included; according to the documentation, the insulation cover is not included in the Asia Pacific region.

  • Brand
    Belimo
  • Reference
    22PE-1UC
  • EAN13
    7630498109973

  • Electrical connection
    Cable
  • Measured values
    Flow Temperature
  • Output signal
    BACnet Modbus MP-Bus 0...10 V
  • AC/DC voltage
    AC/DC 24 V
  • Output voltage range [Range]
    1 x 0...10 V, 0.5...10 V, 2...10 V
  • Communication
    BACnet/IP BACnet MS/TP Modbus TCP Modbus RTU MP-Bus Cloud
  • Flow qp
    1.5
  • Medium
    Water, water with max. 60% vol. glycol.
  • Valve size
    15 mm | 1/2 inch
