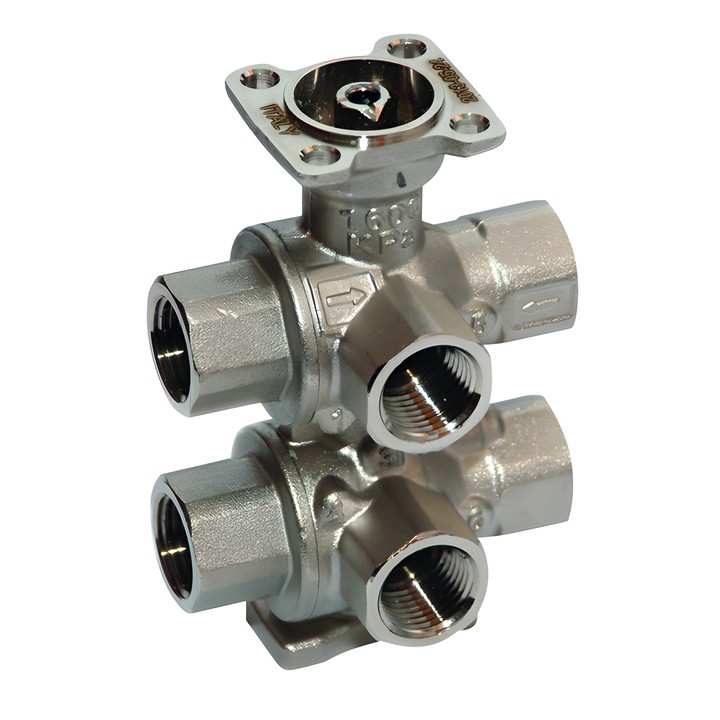

Belimo R3015-1P3-P63-B2 - 6-way ball valve with control insert

Name: Belimo R3015-1P3-P63-B2 - 6-way ball valve with control insert
Brand: Belimo
SKU: R3015-1P3-P63-B2
Price: 592.16 PLN
Availability: BackOrder

Belimo

zł592.16

VAT included

zł481.43 tax excluded

6-way ball valve with control insert, DN 15, with Rp 1/2" female thread. Kvs values are 1.3 m³/h for sequence 1 and 0.63 m³/h for sequence 2.

Designed for switching or analogue control of water flow in heating and cooling elements in closed-loop water systems.

Delivery in approx. 14 days

Belimo R3015-1P3-P63-B2

6-way control ball valve with control insert and two operating sequences. The valve is repositioned using a rotary actuator with a rotation angle of 90°.

Key features and parameters

DN 15; Rp 1/2" female thread; PN 16.
Kvs (sequence 1): 1.3 m³/h; Kvs (sequence 2): 0.63 m³/h.
Medium: water, water with max. 50% by volume glycol.
Medium temperature: 6...80°C [43...176°F].
Maximum differential pressure ∆pmax: 100 kPa; closing pressure ∆ps: 350 kPa.
Differential pressure note: quiet operation Δpv100 <50 kPa.
Flow characteristic: linear; permissible leakage: bubble-tight, leakage rate A (EN 12266-1).
Rotation angle: 90°; sequence 1: 0...30° (cooling recommended), dead zone: 30...60°, sequence 2: 60...90° (heating recommended).
Nickel-plated brass body; stainless steel control insert.

The valve is designed for stationary heating, ventilation and air-conditioning systems. It can be installed in any position from vertical to horizontal; it must not be installed with the axis pointing downwards.
