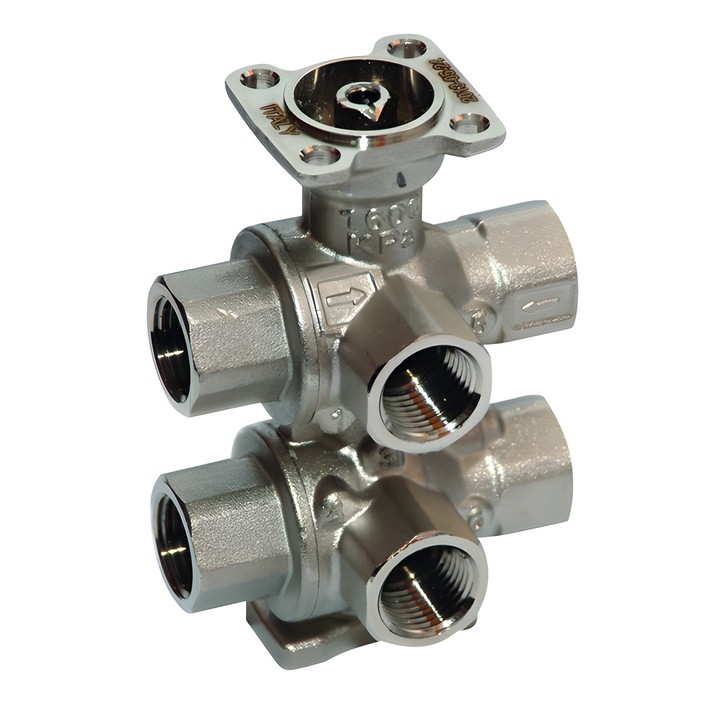

Belimo R3015-P63-1P3-B2 - 6-way ball valve with control insert

Name: Belimo R3015-P63-1P3-B2 - 6-way ball valve with control insert
Brand: Belimo
SKU: R3015-P63-1P3-B2
Price: 592.16 PLN
Availability: BackOrder

Belimo

zł592.16

VAT included

zł481.43 tax excluded

6-way ball valve with control insert, DN 15, with Rp 1/2" female thread. Kvs values are 0.63 m³/h for sequence 1 and 1.3 m³/h for sequence 2; nominal pressure PN 16.

Designed for switching or analogue control of water flow in heating and cooling elements in closed-circuit water systems.

Delivery in approx. 14 days

Belimo R3015-P63-1P3-B2

6-way control ball valve with a control insert and two flow sequences. The valve is positioned by a rotary actuator with a 90° rotation angle.

Key features and technical data

Nominal diameter: DN 15; connection: Rp 1/2" female thread.
Kvs (sequence 1): 0.63 m³/h; Kvs (sequence 2): 1.3 m³/h.
Nominal pressure: PN 16; differential pressure ∆pmax 100 kPa; closing pressure: 350 kPa.
Medium: water or water with a maximum of 50% vol. glycol; medium temperature: 6...80°C [43...176°F].
Flow characteristic: linear; permissible leakage: bubble-tight, leakage rate A (EN 12266-1).
Rotation ranges: sequence 1 — 0...30° (cooling recommended), dead zone — 30...60°, sequence 2 — 60...90° (heating recommended).
Body made of nickel-plated brass, closing element made of chrome-plated brass, control insert made of stainless steel.

The valve is designed for stationary heating, ventilation and air-conditioning systems. Permissible mounting position: from vertical to horizontal relative to the spindle; installation with the axis pointing downwards is not permitted.
