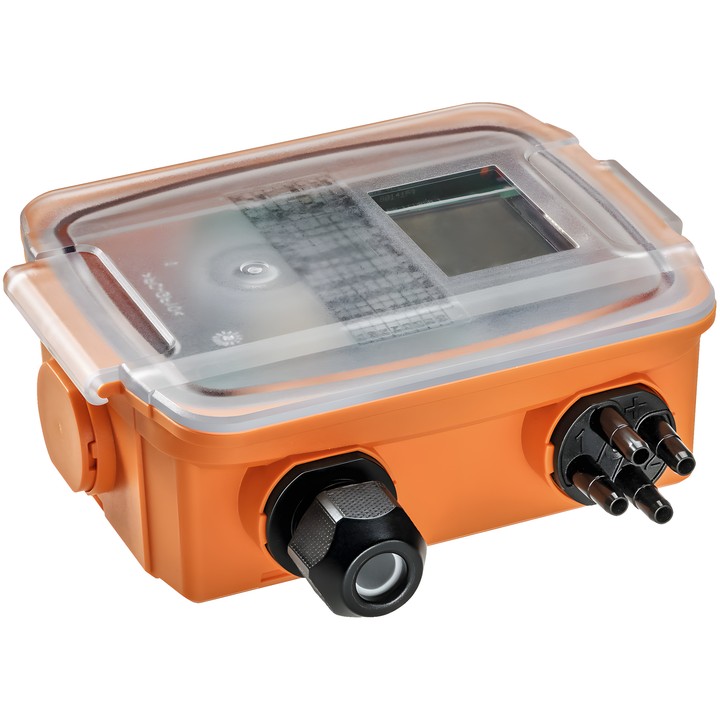

Belimo 22ADP-154F dual differential air pressure sensor with two independent measuring systems. Measuring range -100...2500 Pa, 8 selectable ranges for each system, Modbus RTU communication and LCD.

Power supply AC/DC 24 V. Two voltage outputs 0...5 V or 0...10 V; measured values include differential pressure and volumetric flow.

Delivery in approx. 14 days
Share

Belimo 22ADP-154F – dual differential air pressure sensor

Transmitter with two independent measuring systems, designed to monitor positive pressure, negative pressure or differential pressure in air and other non-flammable, non-aggressive gases. The documentation specifies use in stationary HVAC installations, including monitoring air filters and fan V-belts.

Key features

  • Two independent measuring systems; 8 selectable measuring ranges for each.
  • Pressure measuring range: -100...2500 Pa (-0.4...10 inch WC).
  • Measured values: differential pressure and volumetric flow.
  • Modbus RTU communication; 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ. The 0...5/10 V signal is selectable by switch.
  • Nominal voltage AC/DC 24 V; nominal voltage range AC 19...29 V / DC 15...35 V.
  • Backlit LCD, 29x35 mm.
  • Adjustable typical response time: 0.8 s or 4.0 s.
  • Protection rating IP65 / NEMA 4X.
  • Electrical connection: detachable terminal strip with spring connectors, max. 2.5 mm².

Included: mounting plate, mounting kit, 4 plastic duct connections and 2 PVC tubes, each 2 m long.

  • Brand
    Belimo
  • Reference
    22ADP-154F
  • EAN13
    7630498117770

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure Volume flow
  • Output signal
    Modbus 0...5 V 0...10 V
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Display type
    LCD
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU
