Belimo 22ADP-184 air differential pressure sensor with 8 selectable measuring ranges from -100...2500 Pa. AC/DC 24 V supply; output signals 0...5 V, 0...10 V or 4...20 mA.

IP65 / NEMA 4X enclosure. Supplied with mounting plate, mounting kit, 2 plastic duct connections and 2 m PVC tube.

Delivery in approx. 14 days
Share

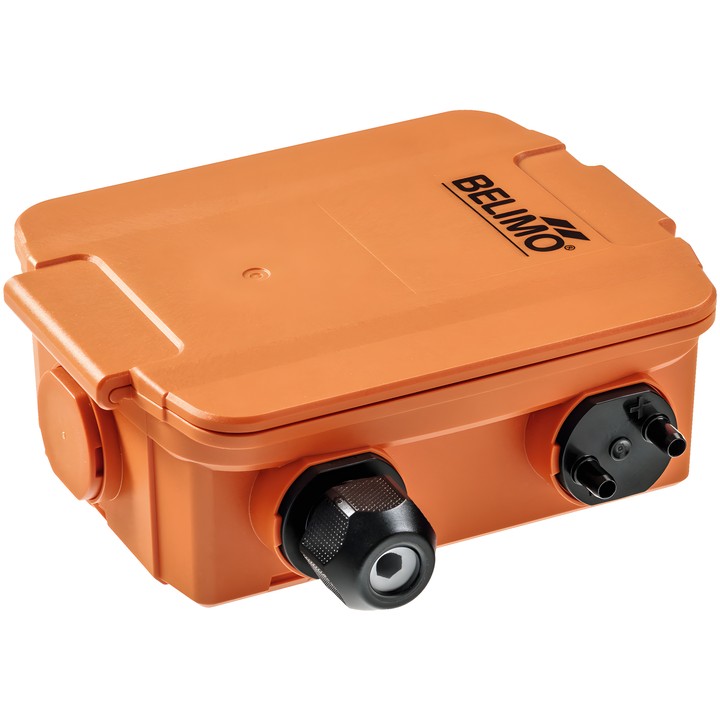

Belimo 22ADP-184 – air differential pressure sensor

The device is designed to monitor the differential pressure of air and other non-flammable, non-aggressive gases. Model 22ADP-184 has 8 selectable measuring ranges and analogue outputs.

Key features

  • Measuring range: -100...2500 Pa (-0.4...10 inch WC); 8 selectable ranges.
  • Rated voltage: AC/DC 24 V.
  • Voltage output: 1 x 0...5 V, 0...10 V, min. resistance 10 kΩ; 0...5/10 V signal selectable via switch.
  • Current output: 1x 4...20 mA, max. resistance 500 Ω.
  • Enclosure protection rating: IP65 / NEMA 4X.
  • Electrical connection: pluggable terminal block with spring terminals, max. 2.5 mm².
  • Included: mounting plate, dowels, screws, 2 plastic duct connections and 2 m PVC tube.

When the voltage output is switched from 0...10 V to 0...5 V, the current signal range changes from 4...20 mA to 4...12 mA.

  • Brand
    Belimo
  • Reference
    22ADP-184
  • EAN13
    7630498100901

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    0...5 V 0...10 V 4...20 mA
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Current output power [Range]
    1x 4...20 mA, max. resistance 500 Ω
