Belimo RV24A-SZ - linear actuator for globe valves

Belimo RV24A-SZ linear actuator

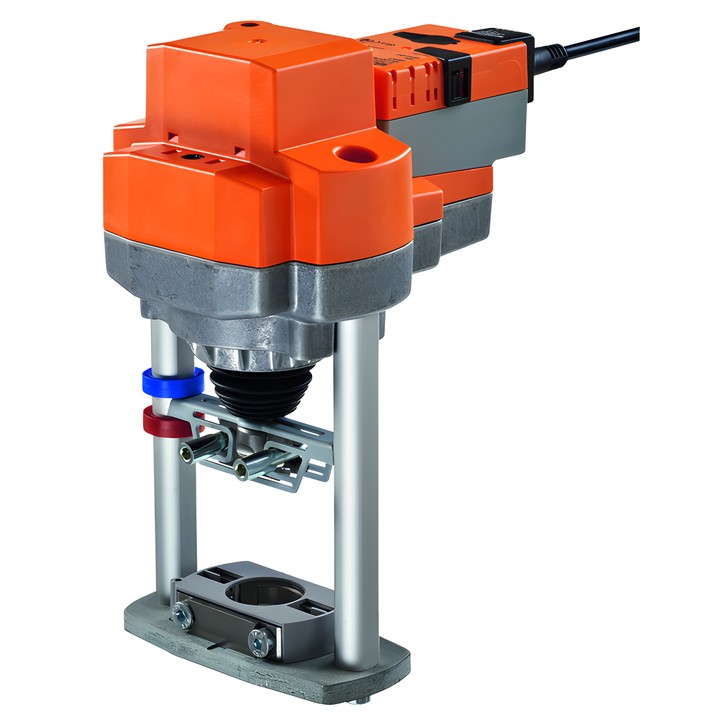

RV24A-SZ is a modulating actuator for 2-way and 3-way globe valves. The Y control signal determines the actuator position, while the U feedback signal enables electrical position readout.

Key specifications

• Thrust: 4500 N; stroke: 50 mm; running time: 150 s / 50 mm.
• Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
• Y operating range: 0.5...10 V; U position feedback signal: 0.5...10 V, max. 0.5 mA.
• Power consumption during operation: 6 W; in the rest position: 1.5 W; power for wire sizing: 11 VA.
• Power and control connection: 1 m cable, 4x 0.75 mm².
• IEC/EN protection rating: IP54; NEMA/UL protection rating: NEMA 2.
• Ambient temperature: 0...50°C; ambient humidity: max. 95% RH, non-condensing.

Installation and operation

The actuator is mounted directly on the valve using shaped clamping jaws. It can be rotated 360° on the valve neck. A push-button enables manual override, while a switch changes the direction of travel. Adaptation to the mechanical range takes place when the power is first switched on; it can also be initiated using the push-button. The actuator is overload-protected and stops automatically when it reaches the end position.
