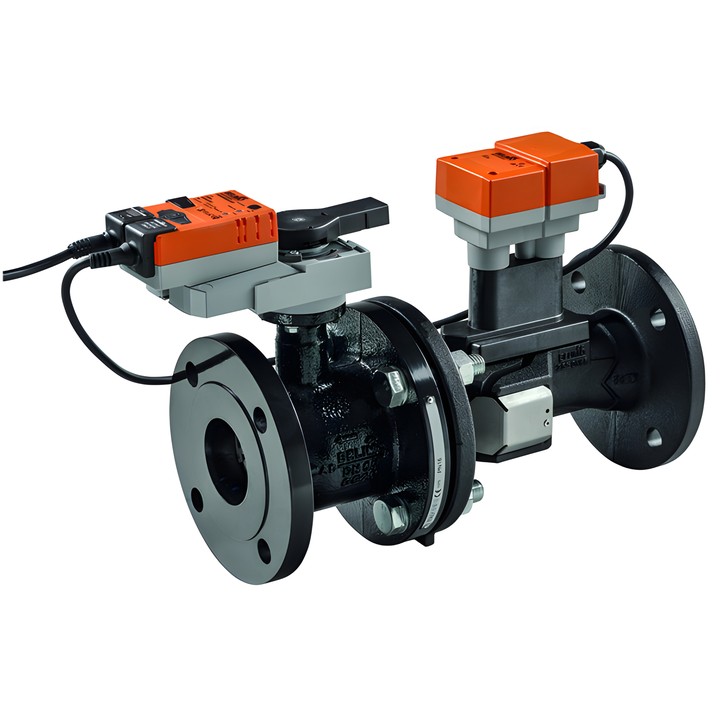

Belimo EP065F+MOD - 2-way EPIV control ball valve

Name: Belimo EP065F+MOD - 2-way EPIV control ball valve
Brand: Belimo
SKU: EP065F+MOD
Price: 12849.59 PLN
Availability: BackOrder

Belimo

zł12,849.59

VAT included

zł10,446.82 tax excluded

Belimo EP065F+MOD is a 2-way EPIV control ball valve with electronic flow control independent of pressure changes. The DN 65 model has a PN 16 flange connection and a nominal flow rate V'nom 8 l/s.

The device is powered by AC/DC 24 V. It supports BACnet MS/TP, Modbus RTU and MP-Bus, as well as a 2...10 V control signal.

Delivery in approx. 14 days

Belimo EP065F+MOD – EPIV control valve

2-way ball valve with an electronic controller and ultrasonic flow measurement. It is designed for closed-loop water systems, including analogue flow control in air handling unit circuits and heating systems.

Key features and parameters

Nominal diameter DN 65; PN 16 flange connection.
Nominal flow rate V'nom 8 l/s; V'max adjustable to 30...100% V'nom.
Power supply AC/DC 24 V; operating range Y 2...10 V.
Communication via BACnet MS/TP, Modbus RTU (factory setting) and MP-Bus; conventional control is also possible.
Medium: water or water with a maximum of 50% by volume glycol; medium temperature -10...120°C [14...248°F].
Maximum differential pressure ∆pmax 340 kPa; closing pressure ∆ps 690 kPa.
Equal-percentage flow characteristic, with the option to switch to linear.
Permissible leakage: bubble-tight, leakage rate class A (EN 12266-1).

Installation position: from vertical to horizontal in relation to the spindle; installation with the axis pointing downwards is not permitted.
