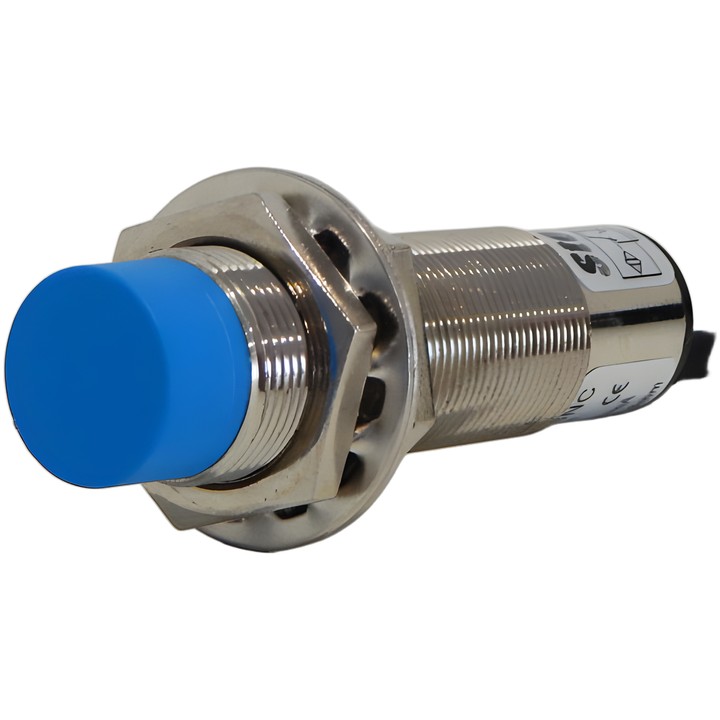

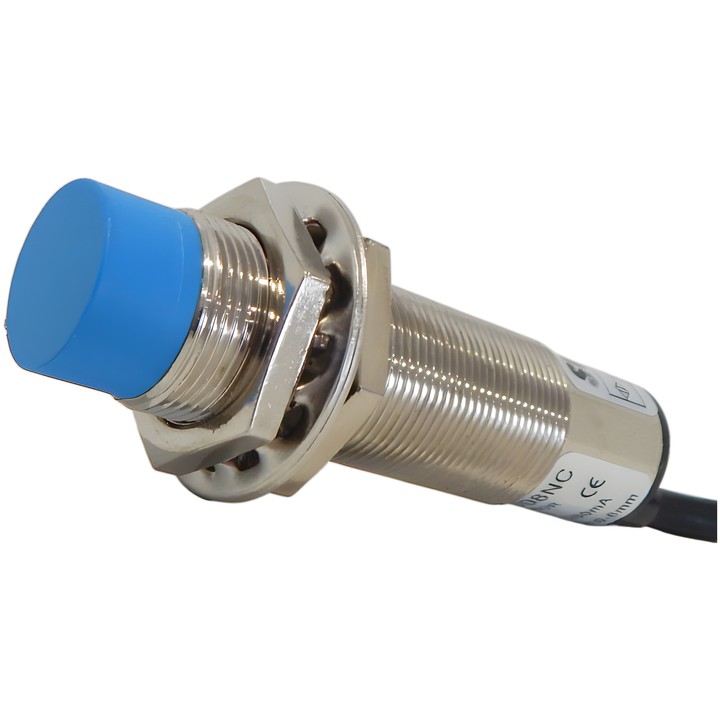

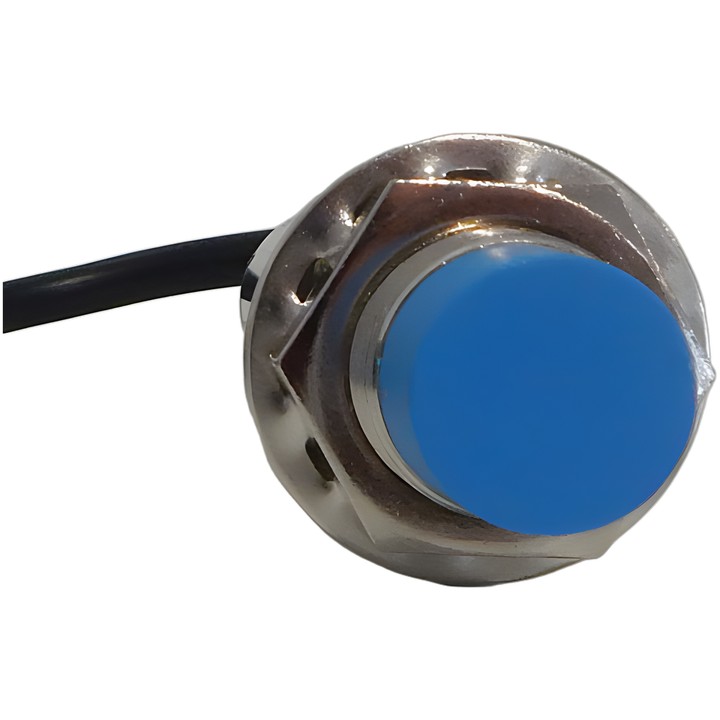

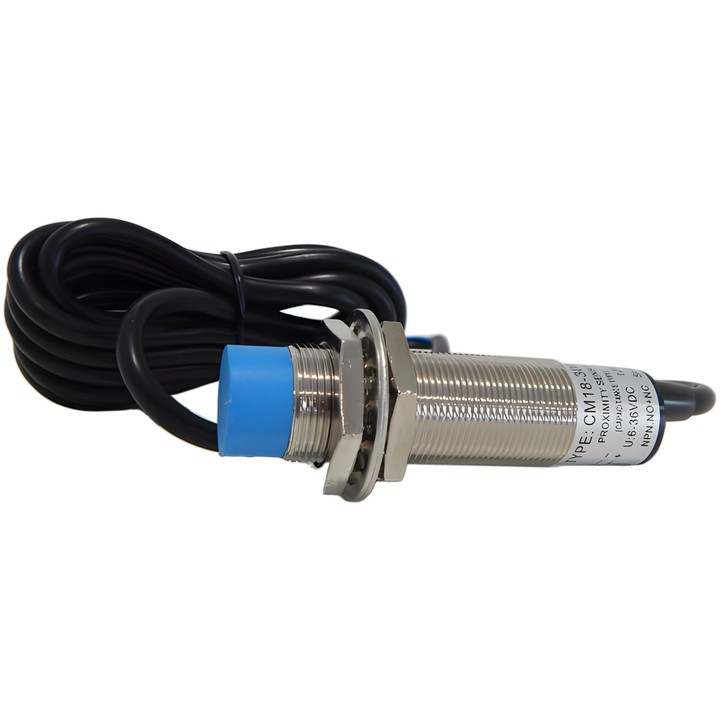

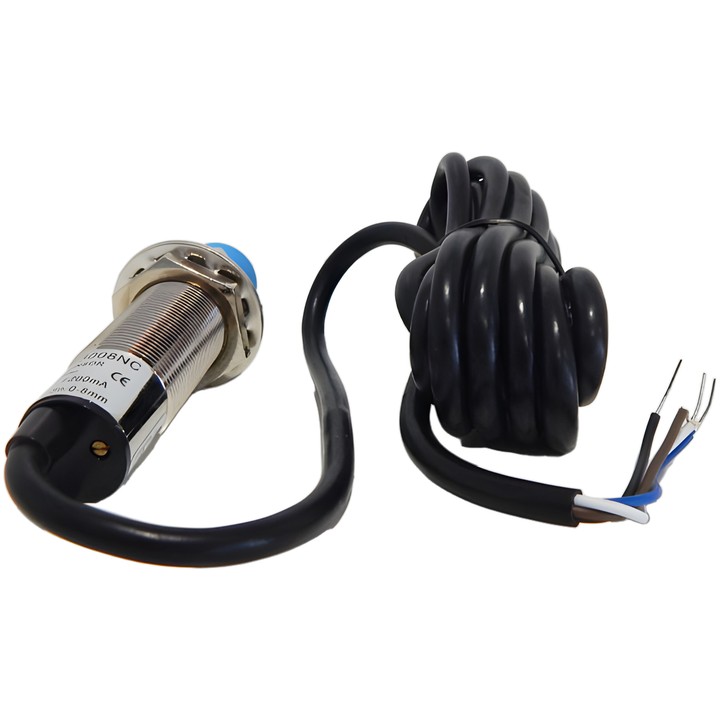

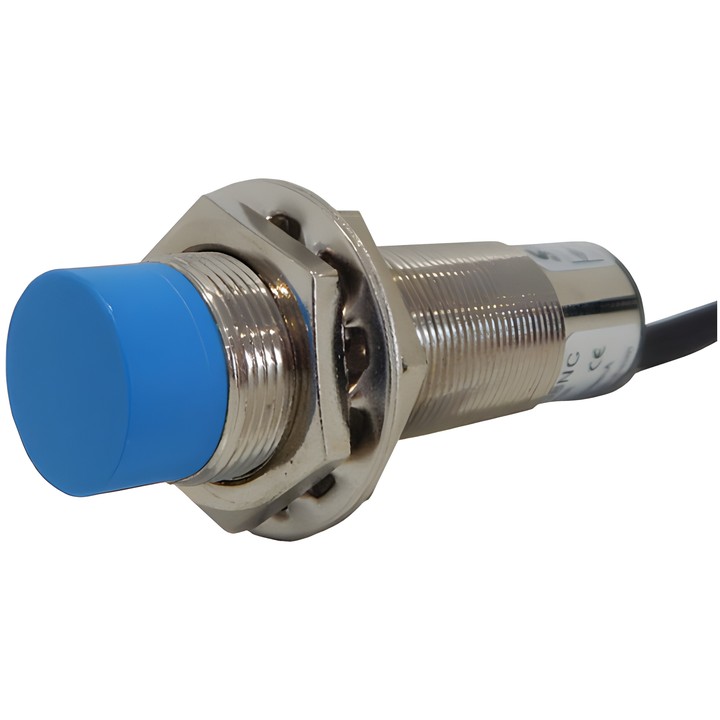

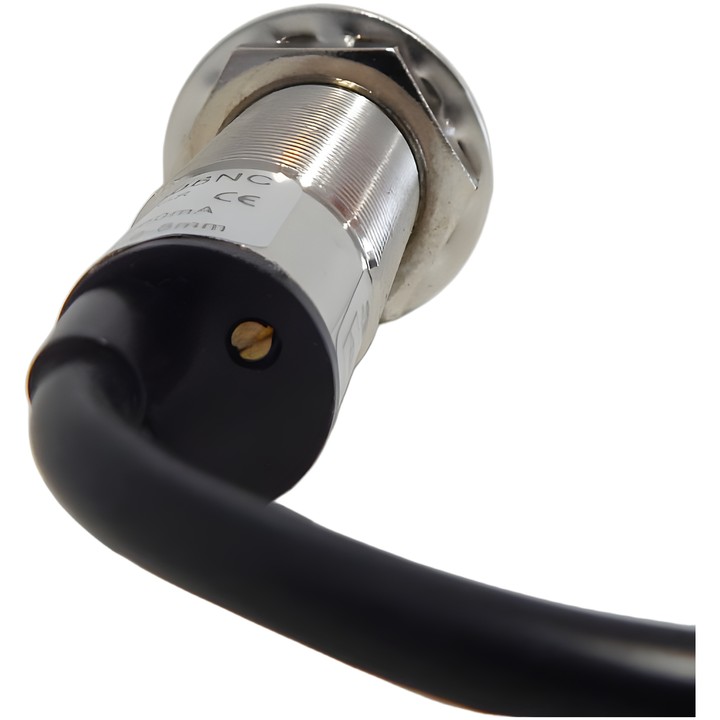

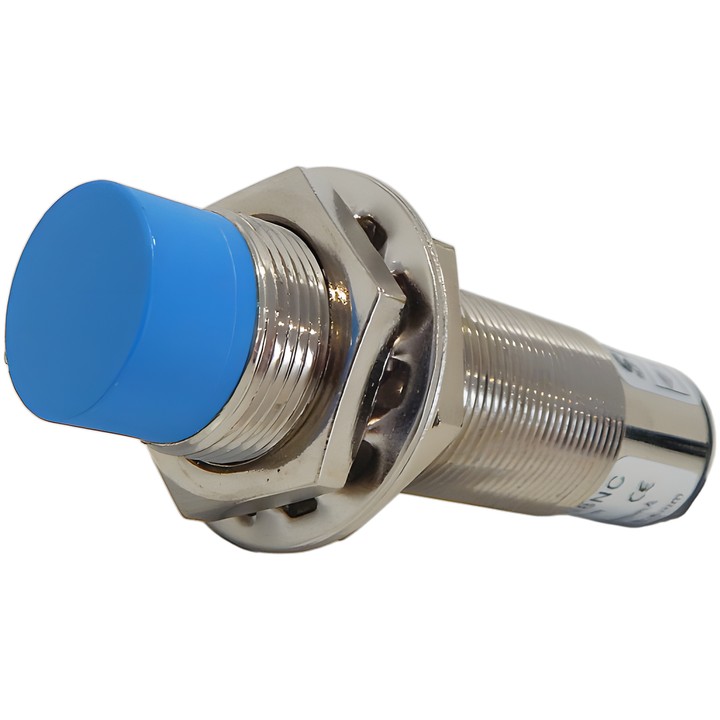

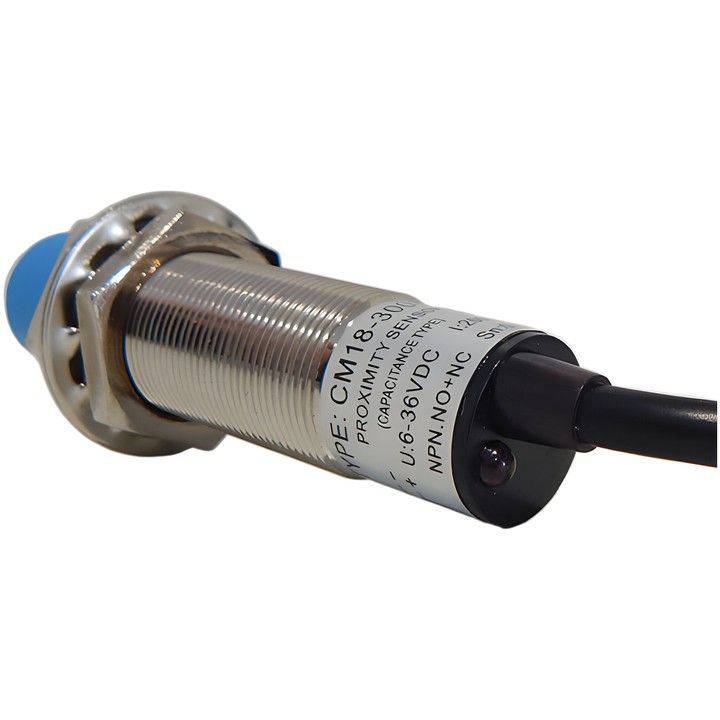

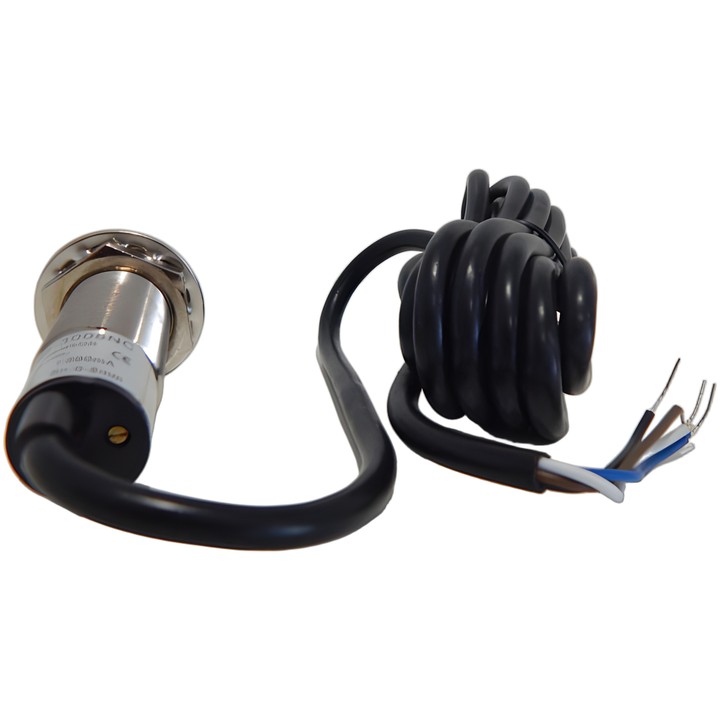

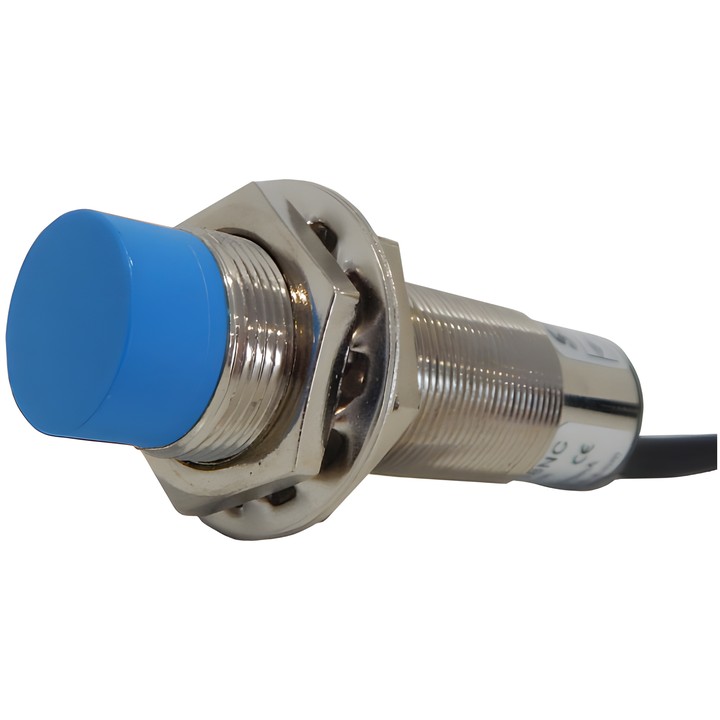

Stord CM18-3008NC images
Stord CM18-3008NC
Price:
zł75.01
VAT included
zł60.98 tax excluded
Capacitive sensor with a sensing range of up to 8 mm, diameter M18x1, 4-wire, with NO+NC output.
| Operating range: | 0-8 mm |
| Housing diameter: | M18X1 |
| Supply voltage: | 6~36V DC |
| Output type: | 4-wire |
| Output state: | NPN-NO+NC |
| Maximum output current: | 200mA DC |
| Switching frequency: | max 50Hz |
| Sensing face type: | protruding |
| Protection rating: | IP 54 |
| Insulation resistance: | 50MΩ |
| Current consumption: |
8mA/12V DC 15mA/24V DC |
| Operating temperature: | -25°C / +75°C |
| Voltage drop: | <3V |
| Housing: | ABS/metal |
| Sensor length: | 70 mm |
| Power cable length: | 2000 mm |
| Weight: |
-
Brand
-
ReferenceCM18-3008NC
-
Supply voltage6~36V DC
-
Product typeSensors
-
Maximum output current200 mA DC
-
Operating range0-8 mm
-
Output statusNPN-NO+NC
