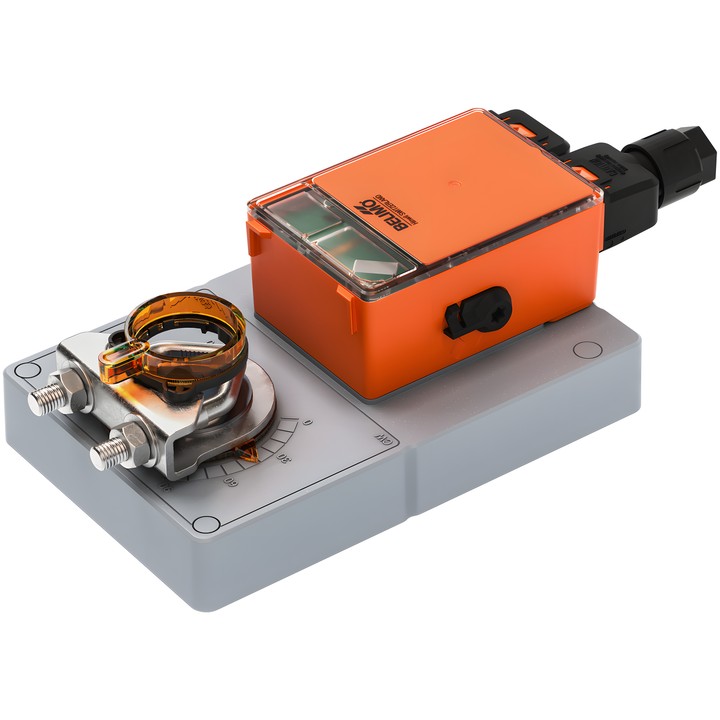

Belimo GM230.18 - damper actuator without spring return

Name: Belimo GM230.18 - damper actuator without spring return
Brand: Belimo
SKU: GM230.18
Price: 1148.84 PLN
Availability: BackOrder

Belimo

zł1,148.84

VAT included

zł934.02 tax excluded

Belimo GM230.18 damper actuator with 40 Nm torque, powered by AC 100...240 V. Supports open/close and 3-point control; motor running time is 150 s / 90°.

Equipped with a universal shaft clamp for 12...26.7 mm, manual adjustment by lever, an LED status indicator and an NFC interface for configuration using Belimo Assistant 2.

Delivery in approx. 14 days

Belimo GM230.18 – damper actuator

An actuator designed to control dampers in stationary heating, ventilation and air-conditioning installations. The GM230.18 is an actuator without spring return, controlled in open/close or 3-point mode.

Key features and specifications

Motor torque: 40 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: open/close, 3-point.
Motor running time: 150 s / 90°; adjustable within 90...150 s.
Motor rotation direction: clockwise (cw); selectable using Belimo Assistant 2.
Rotation angle: max. 95°; electronic limitation on both sides using Belimo Assistant 2.
Universal, reversible shaft clamp: 12...26.7 mm.
Manual adjustment using a side lever with locking option.
Green LED indicating operating status and an NFC interface for changing parameters using Belimo Assistant 2.
Detachable spring-loaded connection terminals.
Power consumption: 3 W during operation, 0.6 W at rest; power for cable sizing: 5.5 VA.
IEC/EN IP54 degree of protection; IEC/EN protection class II, double insulation.
