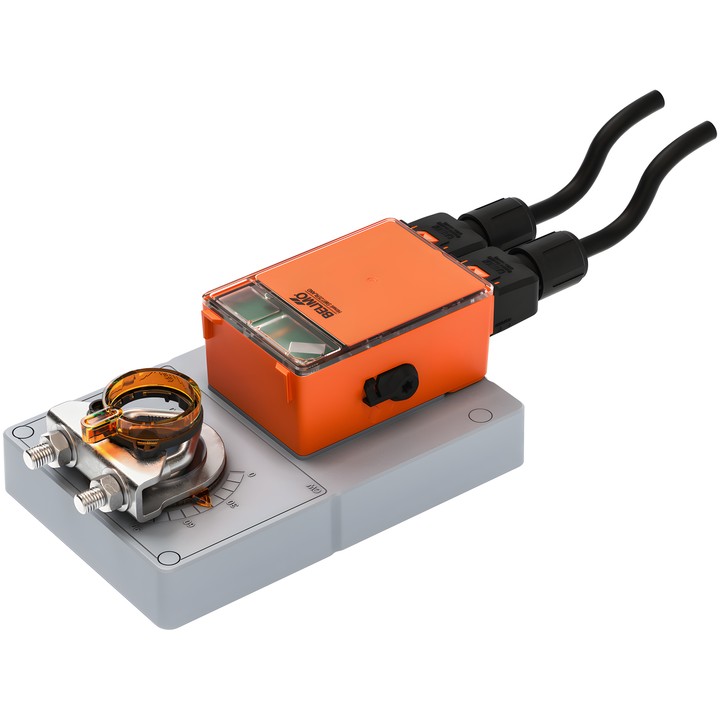

Belimo GMC24S.2A - 40 Nm damper actuator

Name: Belimo GMC24S.2A - 40 Nm damper actuator
Brand: Belimo
SKU: GMC24S.2A
Price: 2895.42 PLN
Availability: OutOfStock

Belimo

zł2,895.42

VAT included

zł2,354.00 tax excluded

Belimo GMC24S.2A damper actuator with a torque of 40 Nm, powered by AC/DC 24 V and controlled in open/close mode. Motor running time is 35 s / 90°, adjustable within 35...150 s.

Equipped with 2x SPST, a reversible universal shaft clamp for 12...26.7 mm shafts, and an NFC interface for configuration using Belimo Assistant 2.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo GMC24S.2A damper actuator

Actuator for controlling dampers in building technical systems. Operates at AC/DC 24 V and is controlled in open/close mode. Device parameters can be changed using Belimo Assistant 2, wirelessly via NFC or through a wired connection.

Key features and parameters

Motor torque: 40 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Rated voltage range: AC 19.2...28.8 V / DC 19.2...28.8 V.
Control: open/close.
Motor running time: 35 s / 90°; adjustable running time: 35...150 s.
Motor direction of rotation: clockwise (cw); can be changed using Belimo Assistant 2.
Rotation angle: max. 95°; can be electronically limited at both ends using Belimo Assistant 2.
2 integrated auxiliary switches: 2x SPST (Single Pole, Single Throw); switching points configurable using Belimo Assistant 2.
Reversible universal shaft clamp: 12...26.7 mm.
Manual adjustment using a side lever, which can be locked.
Detachable FRNC (halogen-free) connection cables: power/control 1 m 3x 0.5 mm² [21 AWG], auxiliary switches 1 m 4x 0.75 mm² [19 AWG].
Green LED operating status indication; NFC interface.
Power consumption during operation: 4 W; in standby position: 0.3 W; for cable sizing: 8 VA.
Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Protective Extra-Low Voltage (PELV).
