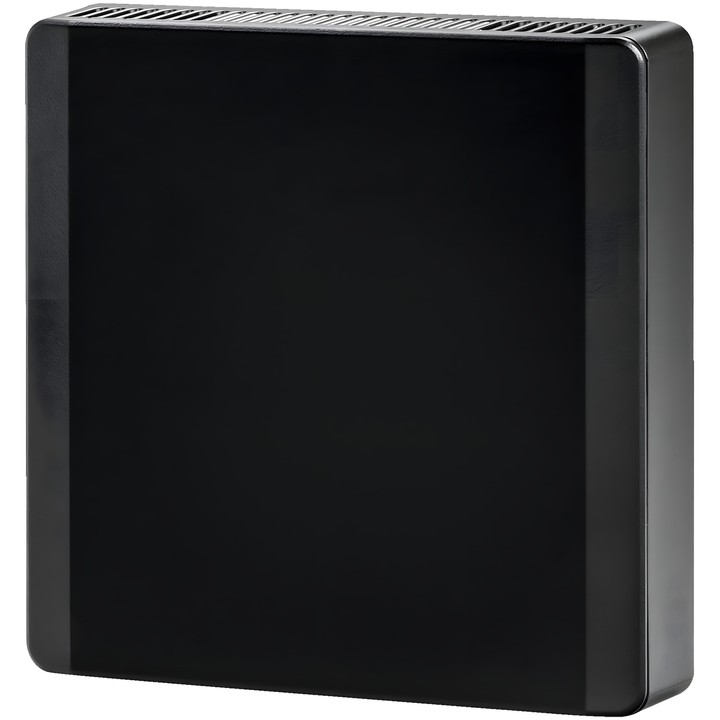

Belimo P-22RTH-1U00A2B - room temperature and humidity sensor

Name: Belimo P-22RTH-1U00A2B - room temperature and humidity sensor
Brand: Belimo
SKU: P-22RTH-1U00A2B
Price: 1227.54 PLN
Availability: OutOfStock

Belimo

zł1,227.54

VAT included

zł998.00 tax excluded

Belimo P-22RTH-1U00A2B room temperature and humidity sensor with AC/DC 24 V supply. Supports Modbus RTU, BACnet MS/TP and MP-Bus communication and works with the Belimo Display App via NFC.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Room temperature and humidity sensor

The Belimo P-22RTH-1U00A2B measures room temperature and relative humidity. The technical documentation also specifies dew point measurement. Belimo Display App provides access to measured values and settings via NFC.

Key features

Nominal supply: AC/DC 24 V.
Communication: Modbus RTU, BACnet MS/TP, MP-Bus.
Measured values: temperature, relative humidity and dew point.
Temperature measurement range: 0...50°C [32...122°F]; accuracy: ±0.3°C @ 25°C [±0.5°F @ 77°F].
Humidity measurement range: 0...100% RH; accuracy: ±2% between 0...90% RH @ 25°C.
Input: 1x DI for a voltage-free contact.
IEC/EN protection rating: IP30.
Surface-mount housing: black, RAL 9005; dimensions 86x86x18 mm (HxWxD).

The technical data sheet identifies this variant as P-22RTH-1U00A-2B.
