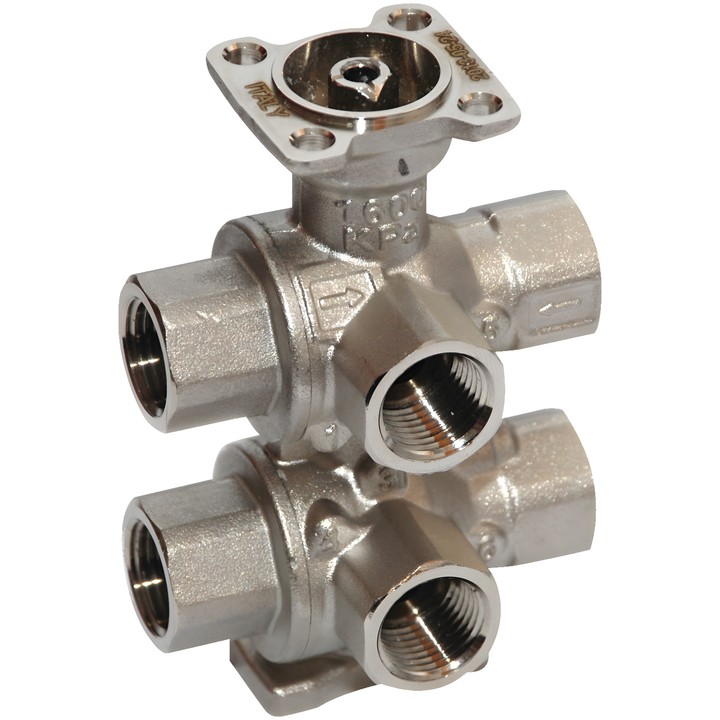

Belimo R3015-1P8-P63B2 - 6-way control valve

Name: Belimo R3015-1P8-P63B2 - 6-way control valve
Brand: Belimo
SKU: R3015-1P8-P63B2
Price: 1141.44 PLN
Availability: OutOfStock

Belimo

zł1,141.44

VAT included

zł928.00 tax excluded

Belimo 6-way control valve, DN 15, PN 16, with Rp 1/2" female thread. Kvs (Sequence 1) is 1.8 m³/h, and Kvs (Sequence 2) is 0.63 m³/h.

Designed for changeover or modulating water-side control in heating and cooling units in closed water systems.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo R3015-1P8-P63B2 – 6-way control valve

Valve with two operating sequences, controlled by a single rotary actuator with a rotation angle of 90°. The documentation specifies use for changeover or modulating water-side control in heating and cooling units in closed water systems.

Key features and specifications

DN 15, PN 16; Rp 1/2" female thread in accordance with ISO 7-1.
Kvs (Sequence 1): 1.8 m³/h; Kvs (Sequence 2): 0.63 m³/h.
Medium: water or water with glycol up to max. 50% by volume; medium temperature 6...80°C [43...176°F].
Linear flow characteristic; bubble-tight, leakage rate class A (EN 12266-1).
Rotation angle 90°: Sequence 1: 0...30° (cooling recommended), dead zone: 30...60°, Sequence 2: 60...90° (heating recommended).
Integrated pressure compensation function for trapped medium, active when the valve is closed (45°).
Nickel-plated brass body; permitted mounting orientation from vertical to horizontal, excluding stem-down installation.
Closing pressure ∆ps: 350 kPa; maximum differential pressure ∆pmax: 100 kPa.
