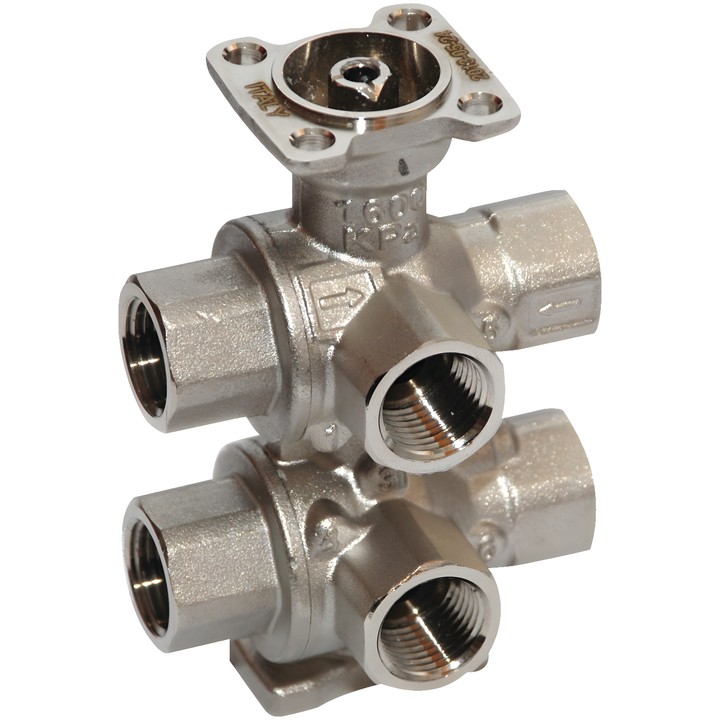

Belimo R3015-P25-1P3B2 - 6-way linear control valve

Name: Belimo R3015-P25-1P3B2 - 6-way linear control valve
Brand: Belimo
SKU: R3015-P25-1P3B2
Price: 1141.44 PLN
Availability: OutOfStock

Belimo

zł1,141.44

VAT included

zł928.00 tax excluded

Belimo 6-way control valve for switching or modulating water-side control of heating and cooling units in closed water systems. DN 15, PN 16, Rp 1/2" female thread; Kvs for sequence 1: 0.25 m³/h, sequence 2: 1.3 m³/h.

The valve has an integrated pressure compensation function and a dead zone separating the heating and cooling sequences.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo R3015-P25-1P3B2 – 6-way valve

Linear-characteristic control valve designed for switching or modulating water-side flow control of heating and cooling units in closed water systems. Both sequences are operated by one rotary actuator with a 90° rotation angle.

Key features and specifications

DN 15, PN 16; Rp 1/2" female threaded connection according to ISO 7-1.
Kvs (sequence 1): 0.25 m³/h; Kvs (sequence 2): 1.3 m³/h.
Medium: water or water with glycol up to max. 50% vol.; medium temperature: 6...80°C [43...176°F].
Flow characteristic: linear; tightness: bubble-tight, Class A according to EN 12266-1.
Closing pressure ∆ps: 350 kPa; maximum differential pressure ∆pmax: 100 kPa.
Sequence 1: 0...30° (recommended for cooling); dead zone: 30...60°; sequence 2: 60...90° (recommended for heating).
The integrated pressure compensation function operates in the closed position at 45° while maintaining separation between both sequences.
Nickel-plated brass body; permitted installation position ranges from vertical to horizontal relative to the stem, but installation with the stem pointing down is not permitted.
