Belimo 22ADP-164L - air differential pressure sensor

Belimo 22ADP-164L - air differential pressure sensor

Belimo
zł1,280.43
VAT included
zł1,041.00 tax excluded

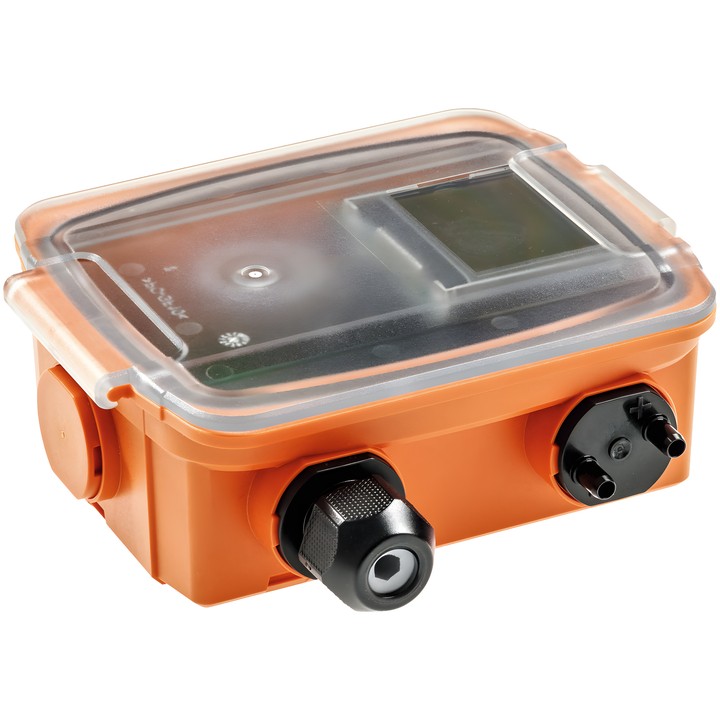

Belimo 22ADP-164L air differential pressure sensor with LCD and BACnet MS/TP communication. Measuring range -100...2500 Pa; 8 selectable measuring ranges are available.

AC/DC 24 V supply. The device measures differential pressure and volumetric flow and provides 0...5 V, 0...10 V outputs.

Delivery in approx. 14 days
Share

Belimo 22ADP-164L – air differential pressure sensor

The sensor is designed to monitor positive pressure, negative pressure or differential pressure in air and other non-flammable, non-aggressive gases in stationary HVAC installations. Measured values include differential pressure and volumetric flow.

Key features

  • Pressure measuring range: -100...2500 Pa; 8 selectable measuring ranges.
  • Communication: BACnet MS/TP.
  • Two voltage outputs: 0...5 V or 0...10 V, min. resistance 10 kΩ; 0...5/10 V signal selectable by switch.
  • Backlit LCD.
  • Nominal voltage: AC/DC 24 V.
  • Degree of protection: IP65 / NEMA 4X.
  • Electrical connection: detachable terminal strip with spring terminals, max. 2.5 mm².
  • Typical response time: adjustable to 0.8 s or 4.0 s.

Included are a mounting plate, mounting kit, 2 plastic duct connections and a 2 m PVC cable.

  • Brand
    Belimo
  • Reference
    22ADP-164L
  • EAN13
    7630498117800

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure Volume flow
  • Output signal
    BACnet 0...5 V 0...10 V
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Display type
    LCD
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    BACnet MS/TP

Techniczna karta katalogowa

Download (3.7MB)

Instrukcja montażu

Download (1.56MB)

Techniczna karta katalogowa – 22ADP-164..

Download (3.7MB)

EU Declaration of Conformity – 22ADP-164L

Download (41.42KB)

Environmental Declaration – 22ADP..

Download (72.08KB)
